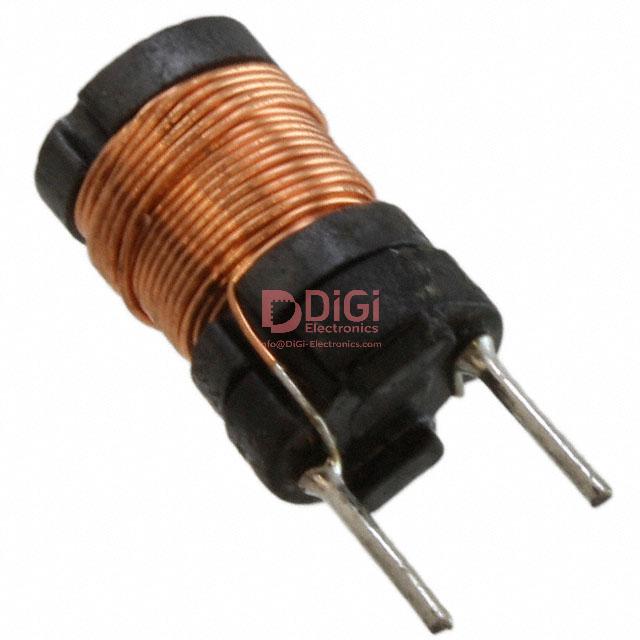

744743102 The Würth Elektronik 744743102 is a wirewound inductor with 1mH inductance and a rated current of 420mA. It features through-hole mounting.
Mfr Part #:

744743102

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The Würth Elektronik 744743102 is a wirewound inductor with 1mH inductance and a rated current of 420mA. It features through-hole mounting.
✓ Total Stock: 8,298 pcs
$ Price Range: $3.42

744743102 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
8,298 pcs
On Request
8298 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

744743102 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Construction
Core Material
DC Resistance
Failure Rate
Inductance
Mounting Type
Rated Current
Self Resonant Frequency
Shielding
Tolerance
View Similar Products (0)

744743102 Description

Short technical summary and product information.

The Würth Elektronik 744743102 is a fixed inductor from the WE-TI series, designed for various electronic applications. This component features a wirewound construction with a ferrite core, providing a nominal inductance of 1 mH with a tolerance of ±5%.



Key electrical characteristics include a rated current of 420 mA and a saturation current of 550 mA. The DC resistance is a maximum of 2.5 Ohms, and it has a self-resonant frequency of 1.6 MHz. The inductor is unshielded and designed for through-hole mounting, supplied in tray packaging.



This active component is suitable for applications requiring stable inductance values and reliable current handling. Its specifications make it a versatile choice for filtering, power supply, and signal processing circuits where a through-hole inductor is preferred.

744743102 Quick Information

Product Type: Wirewound Inductor
Series: WE-TI
Canonical Name: Würth Elektronik 744743102 Wirewound Inductor
Subcategory: Fixed Inductor

744743102 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

744743102 Estimated Pricing

Qty Low High
1+ $3.42 $3.42

Estimated market price range - modelled values for guidance only, not live distributor offers.

744743102 Features

  • 1mH inductance with ±5% tolerance.
  • Rated for 420mA current.
  • Low 2.5 Ohm maximum DC resistance.
  • Ferrite core, wirewound construction.
  • Through hole mounting.

744743102 Applications

  • Suitable for filtering circuits.
  • Used in power supply applications.
  • Ideal for signal processing.
  • General purpose inductor applications.

744743102 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance value of this Würth Elektronik component?

The inductance value is 1 millihenry (mH).

What is the tolerance of this inductor?

The tolerance is ±5%.

What is the rated current for this inductor?

The rated current is 420 mA.

What is the core material used in this inductor?

The core material is ferrite.

What mounting type does this component use?

It uses through-hole mounting.

What series does this inductor belong to?

It belongs to the WE-TI series.
