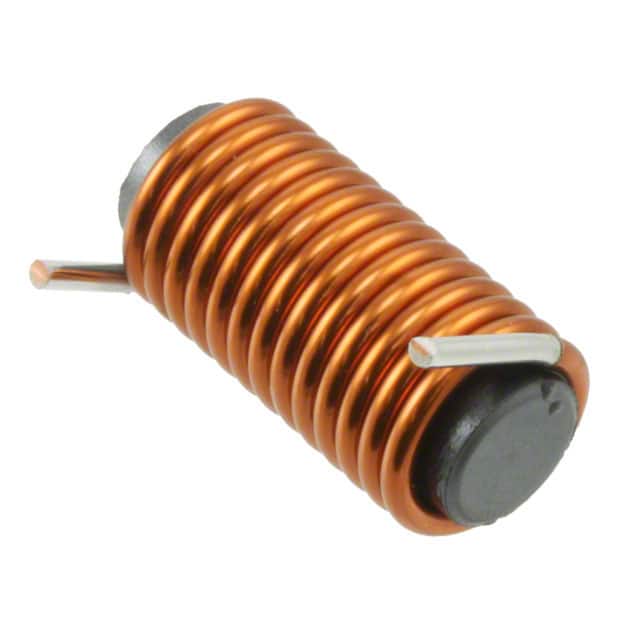

The Würth Elektronik 744710615 is a WE-SD series rod core choke designed for power applications. It is a fixed inductor with a nominal inductance of 6 µH (tolerance ±25%) and a rated current of 15 A (ΔT = 40 K). The DC resistance is 3.5 mΩ (typical, ±20% at 20°C).
Electrical characteristics include a self-resonant frequency of 55 MHz (typical) and a saturation current of 45 A (typical, |ΔL/L| < 10%). The component operates over an ambient temperature range of -40°C to +110°C for rated current, with an extended operating temperature range of -40°C to +150°C.
The inductor is housed in a radial, horizontal cylinder package (open construction) with a diameter of 14.00 mm and length of 30.00 mm. It is through-hole mounted with radial leads. The core material is ferrite, and the component is unshielded.
Compliance certifications include RoHS (2011/65/EU & 2015/863), REACH (EC)1907/2006, and Halogen Free (JEDEC JS709B). The moisture sensitivity level is MSL 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.92 | $2.92 |
| 10+ | $2.88 | $2.88 |
| 50+ | $2.60 | $2.60 |
| 100+ | $2.51 | $2.51 |
| 300+ | $2.32 | $2.32 |
| 600+ | $2.14 | $2.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 µH at 10 kHz / 5 mA, tolerance ±25%.
15 A (ΔT = 40 K).
3.5 mΩ typical at 20°C, tolerance ±20%.
55 MHz typical.
Radial, horizontal cylinder (open), through hole, diameter 14.00 mm, length 30.00 mm.
45 A typical (|ΔL/L| < 10%).
-40°C to +150°C.
