| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature (referring to IR) | |
| Automotive Grade | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Halogen Free | |
| Inductance | |
| Industrial Grade | |
| Lead Style | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Rated Current | |
| SVHC Present | |
| Shielding | |
| Storage Conditions | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type |

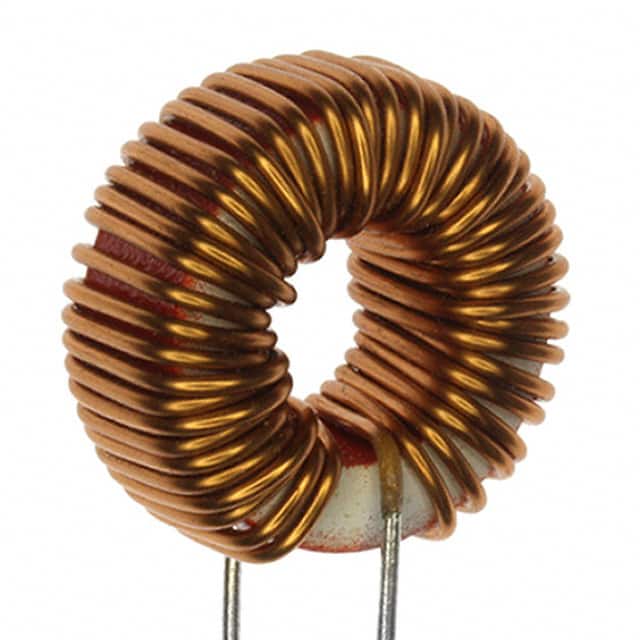

The Würth Elektronik 7447076 is a fixed inductor from the WE-FI series, designed as a toroidal line choke with a ferrite core. It is unshielded and intended for through-hole mounting in a radial vertical open package.
Key electrical specifications include an inductance of 150 µH measured at 10 kHz and 5 mA, with a tolerance of ±20%. The rated current is 6.1 A maximum at a 40 K temperature rise, and the DC resistance is 0.045 Ω maximum at 20°C. The component operates over a temperature range of -40°C to 105°C.
This inductor is suitable for power line filtering, DC/DC converter input/output stages, and EMI suppression in industrial and consumer electronics. It complies with RoHS, REACH, and Halogen Free standards, and has a Moisture Sensitivity Level of 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $5.45 | $5.45 |
| 10+ | $5.19 | $5.19 |
| 60+ | $4.84 | $4.84 |
| 120+ | $4.57 | $4.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
150 µH at 10 kHz/5 mA, ±20% tolerance.
6.1 A maximum at 40K temperature rise (datasheet); some sources list 5 A.
0.045 Ω maximum at 20°C.
Through-hole, radial vertical open package.
-40°C to 105°C.
No, it is unshielded.
Ferrite.
