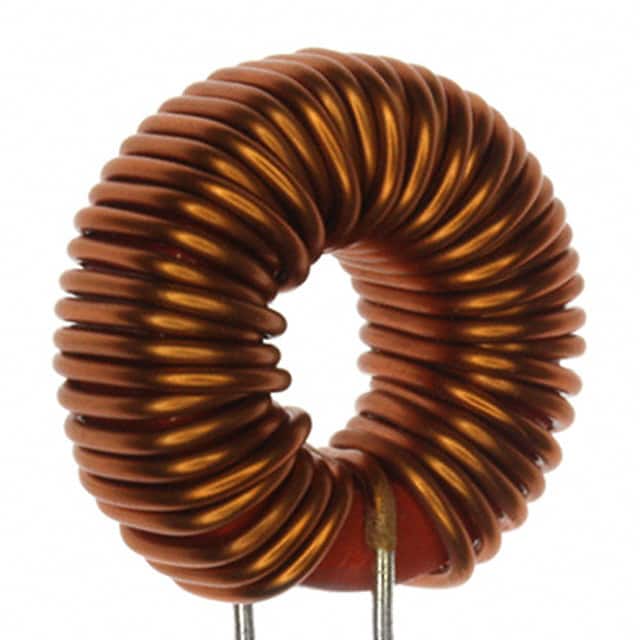

7447070 The 7447070 is a WE-FI leaded toroidal line choke from Würth Elektronik with 100 µH inductance, 6A rated current, and 35 mΩ DCR. It is a through-hole, unshielded inductor suitable for line filtering applications.
Mfr Part #:

7447070

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The 7447070 is a WE-FI leaded toroidal line choke from Würth Elektronik with 100 µH inductance, 6A rated current, and 35 mΩ DCR. It is a through-hole, unshielded inductor suitable for line filtering applications.
✓ Total Stock: 46 pcs
$ Price Range: $2.69 - $3.56

7447070 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
46 pcs
On Request
46 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

7447070 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Ambient Temperature (for Rated Current)
Automotive Grade
Current Rating (Amps)
Current Rating (Maximum @ ΔT = 40 K)
DC Resistance (DCR)
Halogen Free
Inductance
Industrial Grade
Lead Spacing
Lead Style
Material
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Shielding
Storage Conditions
Tape & Reel
Tolerance
Type
View Similar Products (0)

7447070 Description

Short technical summary and product information.

The 7447070 is a WE-FI leaded toroidal line choke manufactured by Würth Elektronik. It features an inductance of 100 µH with ±20% tolerance measured at 10 kHz and 5 mA. The rated current is 6 A maximum based on a temperature rise of 40 K, and the DC resistance is 35 mΩ maximum at 20°C. The component is designed for through-hole mounting in a radial, vertical open package with a ferrite core. It is unshielded.



Operating temperature ranges from -40°C to 105°C, with the rated current specified for ambient temperatures up to 65°C. Storage conditions recommend below 40°C and 75% relative humidity. The choke is certified RoHS compliant (2011/65/EU & 2015/863), REACH conform (EC 1907/2006), halogen free (JEDEC JS709B, IEC 61249-2-21), and has MSL Level 1.



Typical applications include line filtering in power supplies, EMI suppression in DC-DC converters, and general purpose inductor use in electronic equipment. The component is not authorized for use in safety-critical applications such as military, aerospace, medical, or automotive systems without specific agreement with Würth Elektronik.

7447070 Quick Information

Product Type: Fixed Inductor
Series: WE-FI
Canonical Name: WE-FI Leaded Toroidal Line Choke 100 µH 6A
Subcategory: Toroidal Inductor

7447070 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 75
REACH Status: Conform or declared (EC 1907/2006)
Lead Free: Yes

7447070 Estimated Pricing

Qty Low High
1+ $3.56 $3.56
10+ $3.39 $3.39
50+ $3.16 $3.16
100+ $2.98 $2.98
520+ $2.69 $2.69

Estimated market price range - modelled values for guidance only, not live distributor offers.

7447070 Features

  • 100 µH inductance with ±20% tolerance.
  • Rated for 6 A continuous current.
  • 35 mΩ maximum DC resistance.
  • Through-hole radial package for easy mounting.
  • RoHS and REACH compliant for environmental standards.

7447070 Applications

  • Used in power line filtering circuits.
  • Ideal for EMI suppression in DC-DC converters.
  • Suitable for general purpose inductor applications.
  • Can be used in audio equipment noise filtering.

7447070 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the 7447070?

100 µH ±20% at 10 kHz, 5 mA.

What is the rated current of the 7447070?

6 A maximum at ΔT = 40 K.

What is the DC resistance of the 7447070?

35 mΩ maximum at 20°C.

What is the package type of the 7447070?

Through-hole, radial, vertical open package.

What is the operating temperature range?

-40 to 105°C.

Is the 7447070 shielded?

No, it is unshielded.

What compliance certifications does the 7447070 have?

RoHS (2011/65/EU & 2015/863), REACH (EC 1907/2006), Halogen Free (JEDEC JS709B, IEC 61249-2-21), MSL Level 1.
