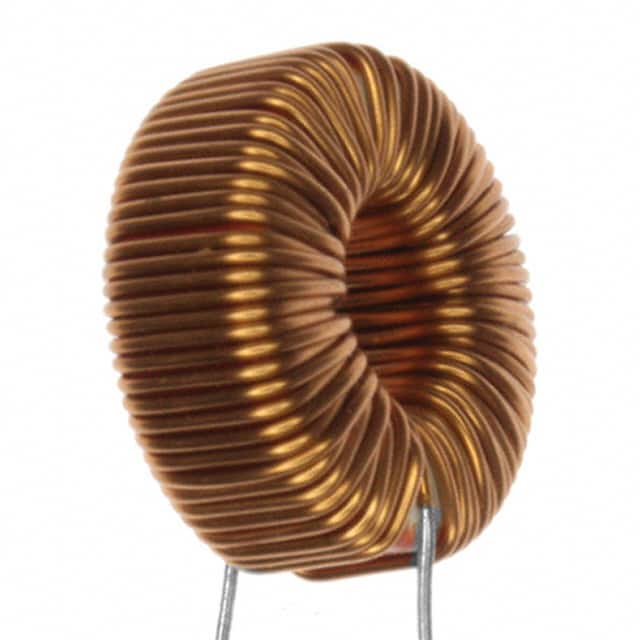

7447060 This is a 300 µH toroidal inductor from Würth Elektronik, rated for 2.5 A with a maximum DC resistance of 150 mΩ. It is a through-hole component with a radial lead style.
Mfr Part #:

7447060

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
This is a 300 µH toroidal inductor from Würth Elektronik, rated for 2.5 A with a maximum DC resistance of 150 mΩ. It is a through-hole component with a radial lead style.
✓ Total Stock: 28 pcs
$ Price Range: $2.01 - $2.40

7447060 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
28 pcs
On Request
28 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

7447060 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Ambient Temperature (referring to IR)
Automotive Grade
Current Rating (Amps)
DC Resistance (DCR)
Halogen Free
Inductance
Industrial Grade
Lead Spacing
Lead Style
Material
Medical Grade
Military Grade
Mounting Type
Operating Temperature
SVHC Present
Shielding
Storage Conditions
Storage Temperature
Tape & Reel
Tolerance
Type
View Similar Products (0)

7447060 Description

Short technical summary and product information.

The 7447060 is a WE-FI leaded toroidal line choke from Würth Elektronik. It features a ferrite core and is unshielded. The inductance is 300 µH measured at 10 kHz/5 mA with a tolerance of ±20%. The rated current is 2.5 A (ΔT=40 K) and the maximum DC resistance is 150 mΩ at 20 °C. The component operates over a temperature range of -40 °C to +105 °C and has an ambient temperature rating of -40 °C to +65 °C for the rated current. Storage conditions are below 40 °C and 75% RH. The inductor is through-hole mounted with a radial lead style and a lead spacing of 9.0 mm. The package is radial, vertical (open) with dimensions of 21.00 mm x 11.00 mm. It is compliant with RoHS, REACH, and Halogen Free standards, and has an MSL of 1. This component is suitable for use in general electronic equipment.

7447060 Quick Information

Product Type: Toroidal Line Choke
Series: WE-FI
Canonical Name: WE-FI Leaded Toroidal Line Choke
Subcategory: Through Hole Toroidal Inductors

7447060 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 75
REACH Status: Conform or declared [(EC)1907/2006]
Lead Free: Yes

7447060 Estimated Pricing

Qty Low High
1+ $2.40 $2.40
10+ $2.29 $2.29
50+ $2.13 $2.13
300+ $2.01 $2.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

7447060 Features

  • High inductance toroidal ferrite core inductor.
  • Rated for 2.5 A continuous current.
  • Low DC resistance of 150 mΩ.
  • Through-hole radial lead mounting.
  • RoHS and REACH compliant.

7447060 Applications

  • Used as line choke in power supplies.
  • Suitable for EMI filtering circuits.
  • Ideal for DC-DC converter input/output filtering.
  • Applicable in industrial and consumer electronics.

7447060 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the 7447060?

The inductance is 300 µH at 10 kHz/5 mA with a tolerance of ±20%.

What is the rated current of this inductor?

The rated current is 2.5 A maximum (ΔT=40 K).

What is the DC resistance (DCR) of the 7447060?

The maximum DC resistance is 150 mΩ at 20 °C.

What is the package style of the 7447060?

It is a through-hole component with radial leads, vertical (open) package, and lead spacing of 9.0 mm.

What is the operating temperature range?

The operating temperature range is -40 °C to +105 °C.

Is the 7447060 shielded?

No, it is unshielded.

What core material is used in this inductor?

The core material is ferrite.
