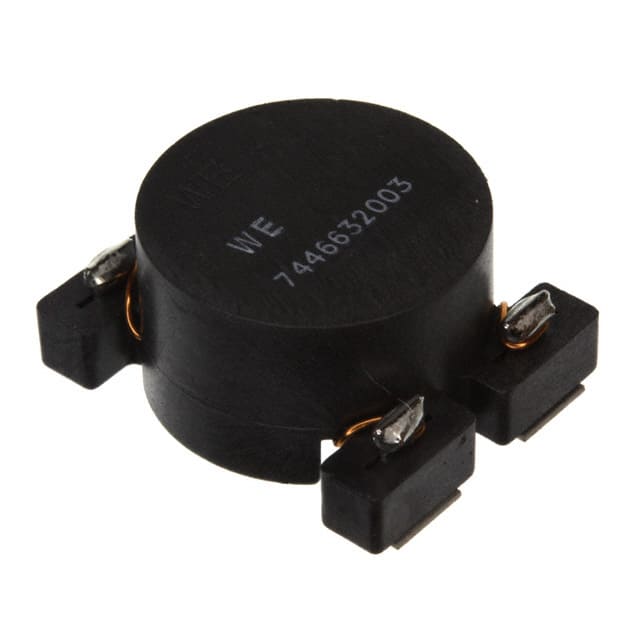

The 7446632003 is a surface mount common mode power line choke manufactured by Würth Elektronik. It is part of the WE-LF SMD series and designed for power line filtering applications. The component features an inductance of 3.3 mH at 10 kHz and 0.1 mA, with a typical leakage inductance of 26 µH.
Rated for a maximum current of 2.25 A at 70 °C and a maximum DC resistance of 150 mΩ, it can handle a rated voltage of 250 VAC. The insulation test voltage is 1500 VAC. The operating temperature range is -40°C to 125°C, with a maximum temperature rise of 55 K.
The choke is housed in a Horizontal, 4 PC Pad package with dimensions 23.3 mm x 18.5 mm x 11.5 mm. It is surface mountable and has a moisture sensitivity level of 1 (unlimited).
This component is RoHS, REACH, and Halogen Free compliant. It is suitable for use in general electronic equipment requiring common mode noise suppression on power lines.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.45 | $6.45 |
| 10+ | $6.27 | $6.27 |
| 50+ | $5.97 | $5.97 |
| 100+ | $5.67 | $5.67 |
| 200+ | $4.69 | $4.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 250 VAC at 50 Hz.
Horizontal, 4 PC Pad surface mount package.
-40°C to 125°C.
Yes, RoHS compliant (2011/65/EU & 2015/863).
3.3 mH at 10 kHz, 0.1 mA.
2.25 A at 70°C.
150 mΩ maximum at 20°C.
