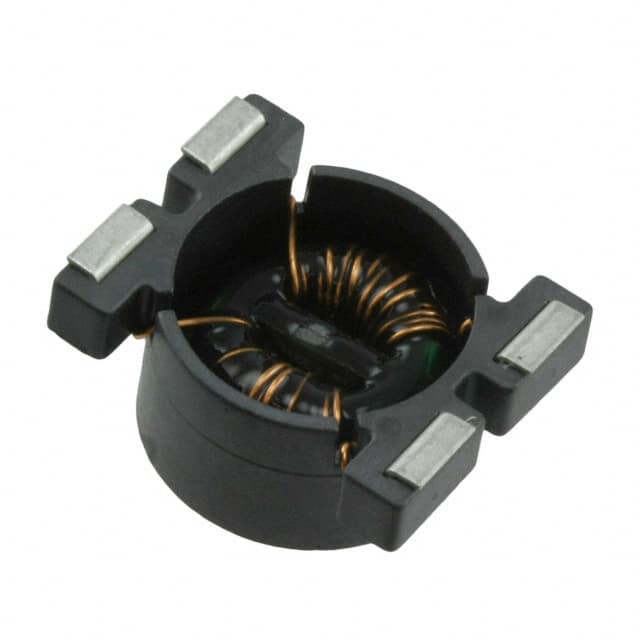

7446632002 Surface mount common mode choke with 2.2 mH inductance and 2.75A rated current. Designed for power line filtering applications.
Mfr Part #:

7446632002

Available from 2 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Surface mount common mode choke with 2.2 mH inductance and 2.75A rated current. Designed for power line filtering applications.
✓ Total Stock: 211 pcs
$ Price Range: $5.49 - $6.45

7446632002 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

7446632002 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Inductance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
Voltage Rating
View Similar Products (0)

7446632002 Description

Short technical summary and product information.

This is a surface mount common mode choke from Würth Elektronik's WE-LF series. It features a nominal inductance of 2.2 mH at 10 kHz and a rated current of 2.75 A at 70°C. The maximum DC resistance is 0.1 Ω.



The component is designed for power line filtering with a rated voltage of 250 V AC and insulation test voltage of 1500 V AC. It has a leakage inductance of 17 µH typical. Operating temperature range is -40°C to +125°C with a maximum temperature rise of 55 K.



The choke is housed in a horizontal, 4 PC pad SMD package with dimensions 23.3 mm x 18.5 mm x 11.5 mm. It is RoHS, REACH, and Halogen Free compliant with MSL 1.

7446632002 Quick Information

Product Type: Common Mode Choke
Series: WE-LF
Canonical Name: WE-LF SMD Common Mode Power Line Choke
Subcategory: Power Line Choke

7446632002 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 [Unlimited]
REACH Status: REACH Unaffected

7446632002 Estimated Pricing

Qty Low High
1+ $6.45 $6.45
10+ $6.27 $6.27
50+ $5.97 $5.97
100+ $5.67 $5.67
200+ $5.49 $5.49

Estimated market price range - modelled values for guidance only, not live distributor offers.

7446632002 Features

  • 2.2 mH inductance at 10 kHz.
  • Rated current of 2.75 A at 70°C.
  • Surface mount horizontal package.
  • RoHS, REACH, and Halogen Free compliant.
  • Operating temperature range -40°C to +125°C.

7446632002 Applications

  • Power line common mode filtering.
  • EMI suppression in switch mode power supplies.
  • Used in industrial and automotive electronics.

7446632002 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the rated voltage of the 7446632002?

250 V AC at 50 Hz.

What is the package type of the 7446632002?

Horizontal, 4 PC Pad surface mount package.

What is the operating temperature range?

-40°C to +125°C.

Is the 7446632002 RoHS compliant?

Yes, compliant with 2011/65/EU & 2015/863.

What is the inductance value?

2.2 mH at 10 kHz, 0.1 mA.

What is the rated current?

2.75 A at 70°C.

What is the DC resistance?

0.1 Ω maximum at 20°C.
