| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
118 pcs
|
118 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

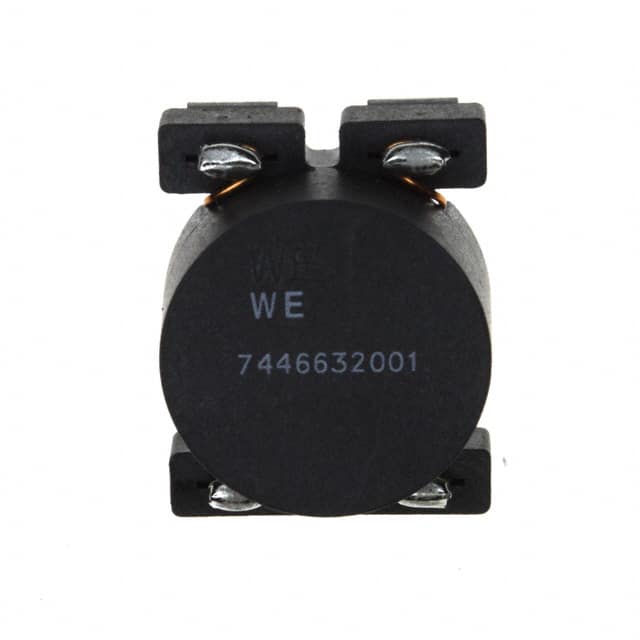

The 7446632001 is a surface-mount common mode power line choke from Würth Elektronik, part of the WE-LF series. It provides 1 mH inductance at 10 kHz / 0.1 mA with a typical leakage inductance of 8 µH at 1 MHz. The component is rated for a maximum DC resistance of 60 mOhm and a maximum current of 3 A at 70 °C.
The choke is designed for power line filtering applications, with a rated voltage of 250 VAC at 50 Hz and an insulation test voltage of 1500 VAC. It operates over a temperature range of -40 °C to +125 °C, with a maximum temperature rise of 55 K.
The component is housed in a horizontal, 4 PC pad package and is surface mountable. Its dimensions are 23.30 mm length, 18.50 mm width, and 11.50 mm maximum height. The product is RoHS3 compliant, REACH unaffected, and halogen free.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.45 | $6.45 |
| 10+ | $6.27 | $6.27 |
| 50+ | $5.97 | $5.97 |
| 100+ | $5.67 | $5.67 |
| 200+ | $5.35 | $5.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 1 mH at 10 kHz / 0.1 mA.
The rated current is 3 A at 70 °C.
The operating temperature range is -40 °C to +125 °C.
The package is Horizontal, 4 PC Pad, surface mount.
Yes, it is RoHS3 compliant.
The maximum DC resistance is 60 mOhm.
The rated voltage is 250 VAC at 50 Hz.
