| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
223 pcs
|
223 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Failure Rate | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

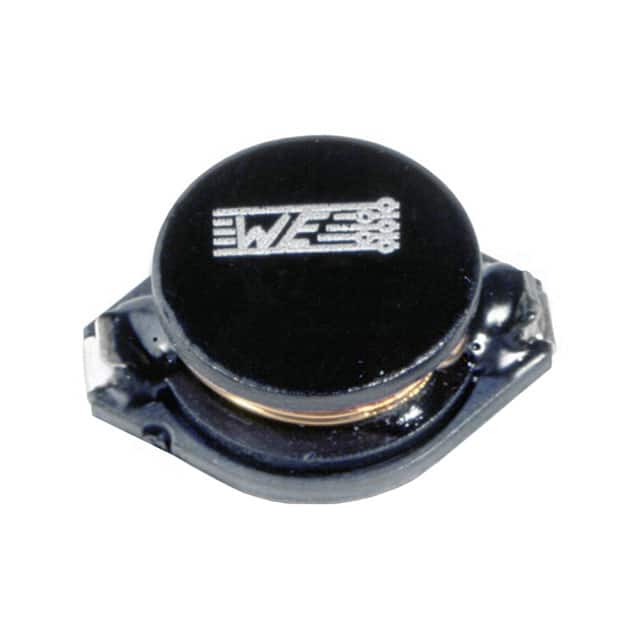

The Würth Elektronik 74458215 is a surface-mount power inductor from the WE-PD4 series, featuring a ferrite drum core and wirewound construction. It offers a nominal inductance of 150µH with ±20% tolerance, a rated current of 1.5A (ΔT=40K), and a typical saturation current of 2.7A. The DC resistance is 0.21Ω typical and 0.25Ω maximum at 20°C.
This unshielded inductor is designed for general-purpose power applications, with a self-resonant frequency of 4.6MHz typical and a maximum operating voltage of 120V DC. It operates over a temperature range of -40°C to +125°C, with an ambient temperature range for rated current of -40°C to +85°C.
The component is housed in a nonstandard SMD package measuring 18.54mm x 15.24mm x 7.11mm. It is RoHS3 compliant, REACH conform, halogen-free, and has an MSL of Level 1. Storage conditions recommend temperatures below 40°C and humidity below 75% RH.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.88 | $2.88 |
| 10+ | $2.16 | $2.16 |
| 25+ | $1.89 | $1.89 |
| 50+ | $1.69 | $1.69 |
| 300+ | $1.56 | $1.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 150µH with ±20% tolerance, tested at 100kHz/100mV.
The rated current is 1.5A maximum at a 40K temperature rise.
The DC resistance is 0.21Ω typical and 0.25Ω maximum at 20°C.
The self-resonant frequency is 4.6MHz typical.
The package is nonstandard SMD with dimensions 18.54mm length, 15.24mm width, and 7.11mm height.
The operating temperature range is -40°C to +125°C.
Yes, it is RoHS3 compliant per 2011/65/EU and 2015/863.
