| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature (for Rated Current) | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage (DC) | |
| Shielding | |
| Storage Conditions | |
| Tolerance | |
| Type | |
| Width |

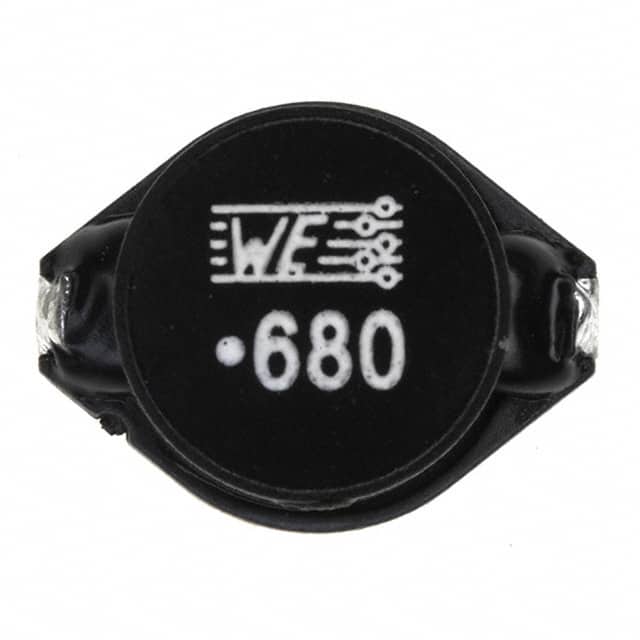

The 74458168 is a fixed inductor from Würth Elektronik, part of the WE-PD4 series. It is an unshielded drum core, wirewound inductor with a ferrite core, designed for surface mount applications. The inductance is 68 µH with a tolerance of ±20%, measured at 100 kHz/100 mV. The DC resistance is 0.11 Ω typical and 0.13 Ω maximum at 20°C. The rated current is 2.3 A maximum at a temperature rise of 40 K, and the saturation current is 3.6 A typical. The self-resonant frequency is 7.2 MHz typical. The maximum operating voltage is 120 V DC. The inductor operates over a temperature range of -40°C to 125°C. The package is a nonstandard SMD with dimensions 18.54 mm x 15.24 mm x 7.11 mm. The component is RoHS, REACH, and Halogen Free compliant, with MSL 1 (unlimited). This inductor is suitable for power supply filtering, DC-DC converters, and general inductive load applications.
68 µH tested at 100 kHz/100 mV.
2.3 A maximum at ΔT=40 K.
0.11 Ω typical, 0.13 Ω maximum at 20°C.
7.2 MHz typical.
Nonstandard SMD package, dimensions 18.54 mm x 15.24 mm x 7.11 mm.
3.6 A typical (ΔL/L < 10%).
-40°C to 125°C.
