| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| SVHC Present | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

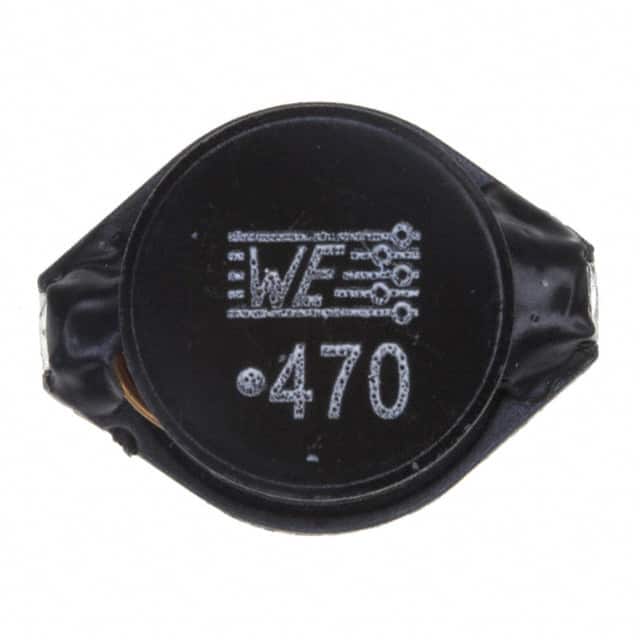

The 74458147 is a fixed inductor from Würth Elektronik's WE-PD4 series. It offers an inductance of 47 µH with ±20% tolerance, measured at 100 kHz/100 mV. The component is rated for a maximum DC current of 2.6 A (ΔT=40K) and has a typical saturation current of 4.5 A. DC resistance is 0.076 Ω typical and 0.086 Ω maximum at 20°C. The self-resonant frequency is 8.4 MHz typical, and the maximum operating voltage is 120 V DC. This unshielded inductor uses a drum core wirewound construction with a ferrite core. It is designed for surface mount assembly in a nonstandard package measuring 18.54 mm x 15.24 mm x 7.11 mm. The operating temperature range is -40°C to +125°C. The component is RoHS, REACH, and Halogen Free compliant, with MSL 1. Typical applications include power supply filtering, DC-DC converters, and general purpose inductive circuits where moderate inductance and current handling are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.43 | $2.43 |
| 10+ | $2.32 | $2.32 |
| 50+ | $2.09 | $2.09 |
| 100+ | $1.94 | $1.94 |
| 300+ | $1.86 | $1.86 |
| 600+ | $1.70 | $1.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
47 µH at 100 kHz/100 mV, tolerance ±20%.
2.6 A maximum at ΔT=40K.
0.076 Ω typical, 0.086 Ω maximum at 20°C.
8.4 MHz typical.
Nonstandard SMD package, 18.54 mm x 15.24 mm x 7.11 mm.
-40°C to +125°C.
No, it is unshielded.
