| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
263 pcs
|
263 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

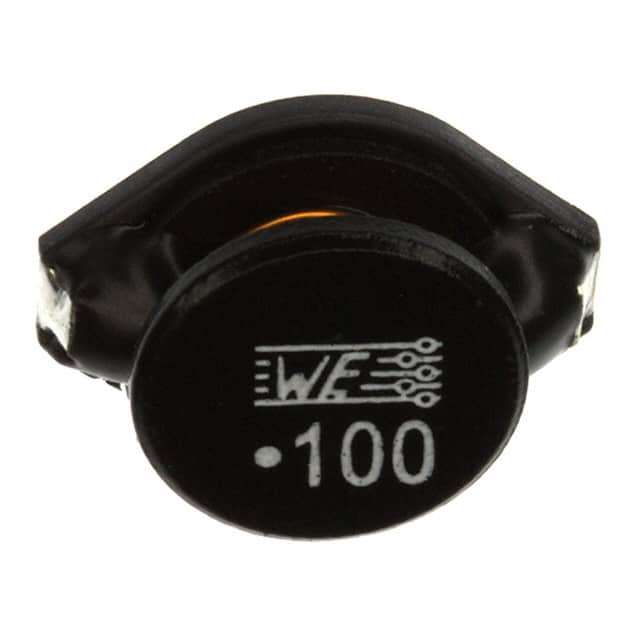

The 74458010 is a power inductor from Würth Elektronik's WE-PD4 series. It offers an inductance of 10µH with ±20% tolerance, measured at 100 kHz/100 mV. The component is rated for a maximum DC current of 4.3A at a 40K temperature rise, with a typical saturation current of 10A (|ΔL/L| < 10%).
DC resistance is 0.021Ω typical and 0.031Ω maximum. The self-resonant frequency is 20 MHz typical, and the maximum operating voltage is 120V DC. The operating temperature range is -40°C to +125°C.
This unshielded inductor uses a ferrite core with wirewound drum core construction. It is surface mount packaging in a nonstandard case measuring 18.54mm x 15.24mm x 7.11mm. The component is RoHS, REACH, and Halogen Free compliant, with MSL Level 1.
10µH, measured at 100 kHz/100 mV, with ±20% tolerance.
4.3A maximum at 40K temperature rise.
0.021Ω typical, 0.031Ω maximum at 20°C.
20 MHz typical.
18.54mm x 15.24mm x 7.11mm, surface mount nonstandard case.
-40°C to +125°C.
No, it is unshielded.
