| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
365 pcs
|
365 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
365 pcs
|
365 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Temperature (referring to IR) | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Rated Current | |
| Saturation Current | |
| Shielding | |
| Storage Temperature | |
| Tolerance | |
| Type | |
| Width |

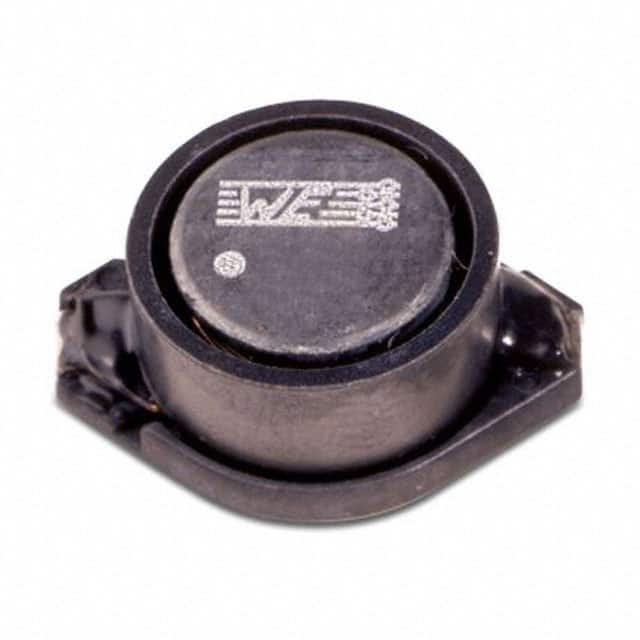

The Würth Elektronik 74456215 is a fixed inductor from the WE-PD4 series, designed for surface mount power applications. It features a ferrite drum core with wirewound construction and unshielded magnetic circuit. The inductor offers 150 µH inductance with ±10% tolerance, a rated current of 1 A (based on 40 K temperature rise), and a saturation current of 1.2 A typical. DC resistance is 0.448 Ω typical and 0.59 Ω maximum. The self-resonant frequency is 5.3 MHz typical, and maximum operating voltage is 120 V. The component is housed in a nonstandard SMD package measuring 12.7 mm x 10 mm x 5.3 mm, with an operating temperature range of -40°C to +125°C. It is suitable for general electronic equipment power supplies, DC-DC converters, and filtering circuits.
The inductance is 150 µH ±10% at 100 kHz/100 mV.
The rated current is 1 A maximum, referenced to a 40 K temperature rise.
Typical DCR is 0.448 Ω and maximum is 0.59 Ω at 20°C.
The self-resonant frequency is 5.3 MHz typical.
It is a surface mount device in a nonstandard package, 12.7 mm x 10 mm x 5.3 mm, with an unshielded drum core.
The operating temperature range is -40°C to +125°C.
Yes, it is RoHS compliant per 2011/65/EU and 2015/863, as verified in the datasheet.
