| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| DC Resistance (Typical/Maximum @ at 20 °C) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

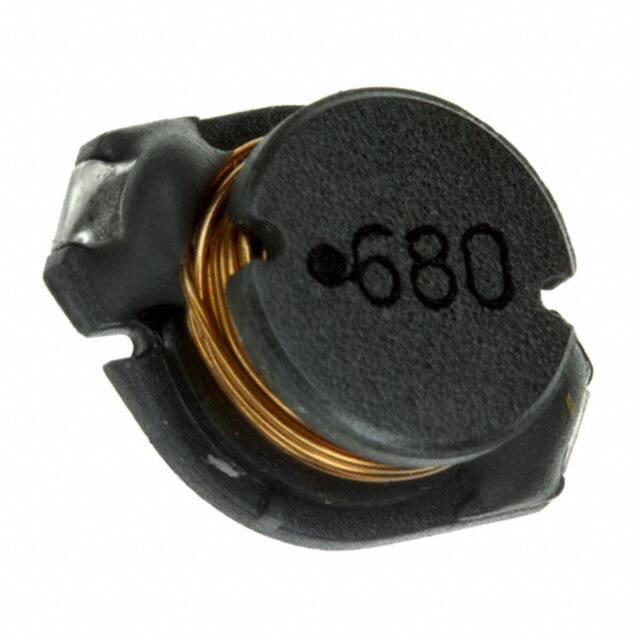

The 74456168 is a surface-mount fixed power inductor from Würth Elektronik in the WE-PD4 family. It features a ferrite drum-core, wirewound construction and is unshielded. The inductor has a nominal inductance of 68 µH at 100 kHz / 100 mV with ±10% tolerance.
The component is rated for a maximum DC current of 1.6 A (ΔT = 40 K) and has a typical saturation current of 1.7 A. DC resistance is 0.187 Ω typical and 0.24 Ω maximum at 20°C, while the self-resonant frequency is 8.5 MHz typical. The maximum operating voltage is 120 V DC.
The inductor operates over -40°C to +125°C and is rated for -40°C to +85°C ambient when referenced to rated current. It is housed in a nonstandard surface-mount package with dimensions 12.70 mm x 10.00 mm x 5.30 mm. The part is RoHS compliant, REACH conform, halogen-free per JEDEC JS709B, and has MSL 1 moisture sensitivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.07 | $2.07 |
| 10+ | $1.97 | $1.97 |
| 50+ | $1.84 | $1.84 |
| 100+ | $1.71 | $1.71 |
| 250+ | $1.58 | $1.58 |
| 600+ | $1.45 | $1.45 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 68 µH at 100 kHz / 100 mV, with ±10% tolerance.
The rated current is 1.6 A maximum (ΔT = 40 K).
DC resistance is 0.187 Ω typical and 0.24 Ω maximum at 20°C.
The self-resonant frequency is 8.5 MHz typical.
The inductor uses a nonstandard surface-mount package with body dimensions 12.70 mm x 10.00 mm x 5.30 mm.
It operates from -40°C to +125°C.
Yes, it is RoHS compliant (2011/65/EU and 2015/863), REACH conform, halogen-free (JEDEC JS709B), and rated MSL 1.
