| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,014 pcs
|
2014 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature (referring to IR) | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| SVHC Present | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

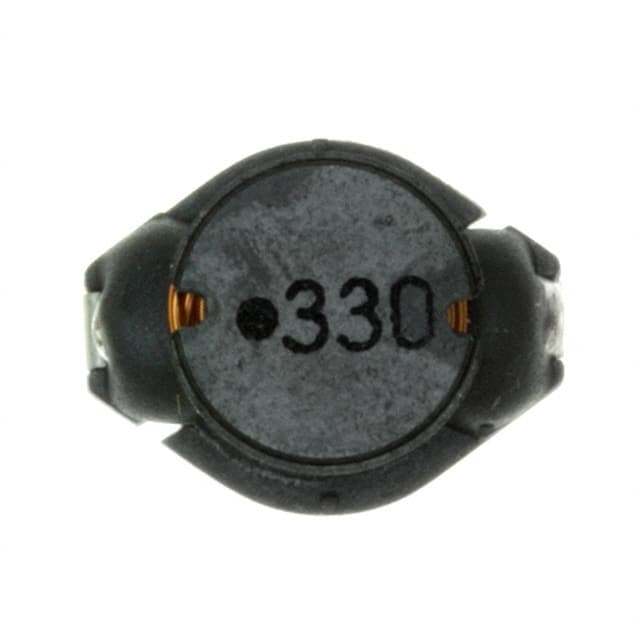

The Wurth Elektronik 74456133 is a WE-PD4 series SMT power inductor designed for general electronic equipment. It features a drum core wirewound construction with a ferrite core and is unshielded.
Key electrical specifications include an inductance of 33 µH at 100 kHz/100 mV with ±10% tolerance, a rated current of 2.3 A (ΔT = 40 K), and a saturation current of 2.6 A typical. DC resistance is 0.094 Ω typical and 0.12 Ω maximum. The self-resonant frequency is 13 MHz typical, and the maximum operating voltage is 120 V.
The inductor is surface mountable in a nonstandard package measuring 12.70 mm x 10.00 mm x 5.30 mm. It operates over a temperature range of -40°C to +125°C, with an ambient temperature range of -40°C to +85°C for rated current. The component is RoHS, REACH, and halogen free compliant, with MSL 1 (unlimited) moisture sensitivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.06 | $2.06 |
| 10+ | $1.97 | $1.97 |
| 50+ | $1.83 | $1.83 |
| 100+ | $1.70 | $1.70 |
| 250+ | $1.57 | $1.57 |
| 600+ | $1.44 | $1.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 33 µH at 100 kHz/100 mV with a tolerance of ±10%.
The rated current is 2.3 A maximum, measured at a temperature rise of 40 K.
The DC resistance is 0.094 Ω typical and 0.12 Ω maximum at 20 °C.
The self-resonant frequency is 13 MHz typical.
The inductor is surface mount in a nonstandard package measuring 12.70 mm x 10.00 mm x 5.30 mm.
