| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
394 pcs
|
394 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Saturation Current (ISAT) | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

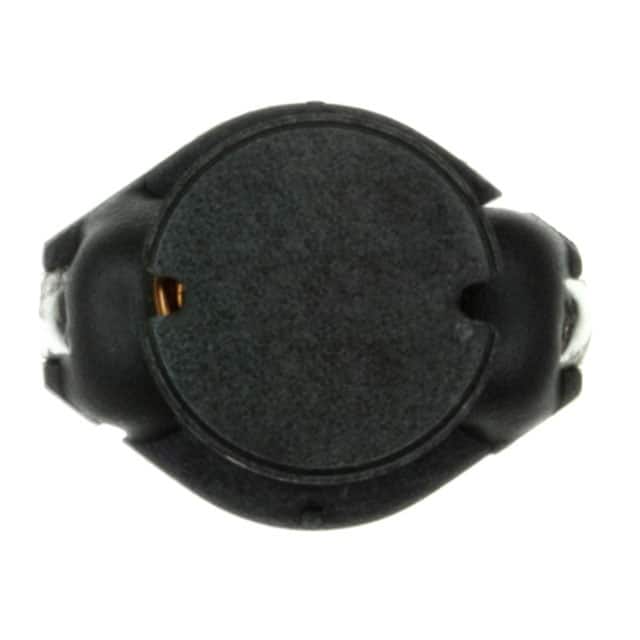

The Würth Elektronik 74456056 is a surface-mount power inductor from the WE-PD4 series. It features an inductance of 5.6 µH with a ±20% tolerance. The component is designed for high current applications, with a rated current of 4 A (based on a 40 K temperature rise) and a typical saturation current of 6 A. Its DC resistance is typically 0.024 Ω and a maximum of 0.032 Ω.
The inductor is unshielded and uses a ferrite core material. It has a self-resonant frequency of 31 MHz and a maximum operating voltage of 120 V DC. The component is housed in a nonstandard SMD package measuring 12.7 mm x 10.0 mm x 5.3 mm. It is RoHS, REACH, and Halogen Free compliant, with an MSL rating of 1 (unlimited). The operating temperature range is -40°C to +125°C.
The inductance is 5.6 µH with a tolerance of ±20%.
The rated current is 4 A maximum, based on a 40 K temperature rise.
The typical DC resistance is 0.024 Ω and the maximum is 0.032 Ω at 20 °C.
The typical self-resonant frequency is 31 MHz.
The package is nonstandard SMD, measuring 12.7 mm in length, 10.0 mm in width, and 5.3 mm in height.
Yes, it is RoHS3 compliant (2011/65/EU & 2015/863).
The operating temperature range is -40°C to +125°C.
