| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| SVHC Present | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

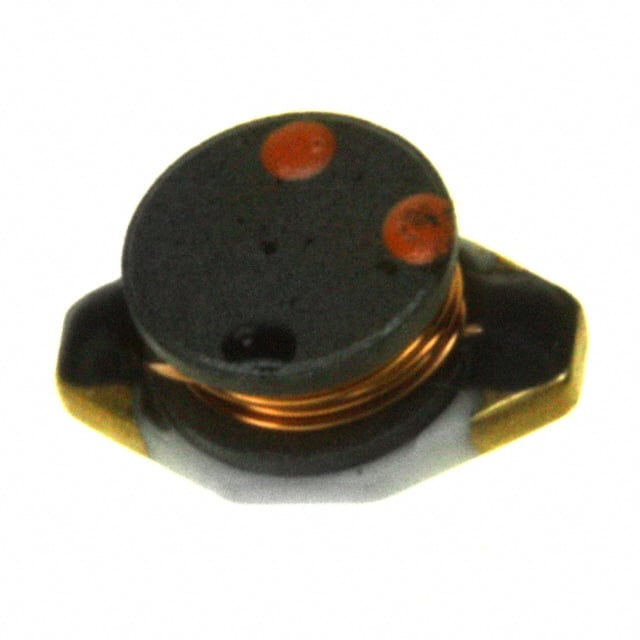

The 74455133 is a surface mount power inductor from Würth Elektronik's WE-PD4 series. It features an inductance of 33 µH with ±20% tolerance, rated current of 0.6 A (ΔT=15K), and saturation current of 0.58 A typical. The DC resistance is 0.362 Ω typical and 0.51 Ω maximum. The self-resonant frequency is 13 MHz typical. The inductor is unshielded with a ferrite core and wirewound drum core construction. It operates over a temperature range of -40°C to +125°C and is rated for a maximum DC voltage of 120 V. The component is housed in a nonstandard SMD package with dimensions 6.60 mm x 4.45 mm x 2.92 mm. It is RoHS, REACH, and Halogen Free compliant with MSL 1. Designed for general electronic equipment, it is suitable for power supply filtering and DC-DC converter applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.43 | $2.43 |
| 10+ | $2.32 | $2.32 |
| 50+ | $2.09 | $2.09 |
| 100+ | $1.94 | $1.94 |
| 250+ | $1.86 | $1.86 |
| 500+ | $1.70 | $1.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
33 µH at 100 kHz / 100 mV, ±20% tolerance.
0.6 A maximum at ΔT = 15 K.
0.362 Ω typical, 0.51 Ω maximum at 20°C.
13 MHz typical.
Nonstandard SMD package: 6.60 mm x 4.45 mm x 2.92 mm maximum.
-40°C to +125°C.
No, it is unshielded.
