| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,896 pcs
|
2896 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,896 pcs
|
2896 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| SVHC Present | |
| Saturation Current | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

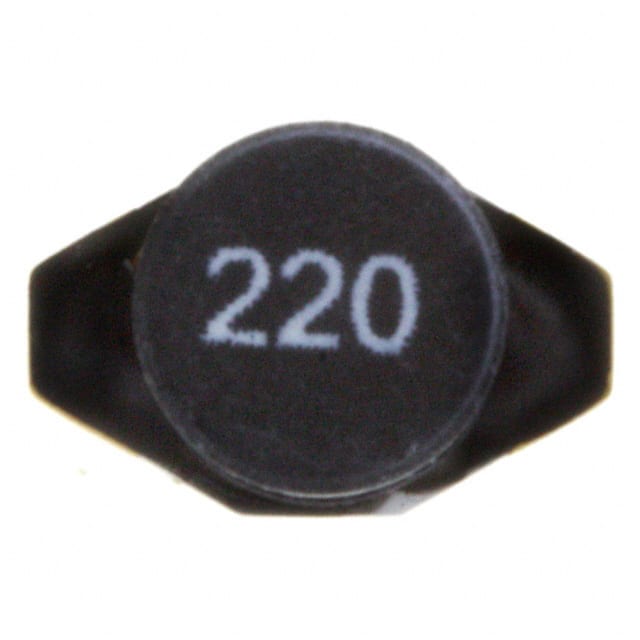

The Würth Elektronik 74455122 is a surface mount power inductor from the WE-PD4 series. It features a drum core, wirewound construction with a ferrite core and is unshielded. The inductor offers an inductance of 22 µH with ±20% tolerance. It is rated for a continuous current of 0.8 A (ΔT=15K) and has a saturation current of 0.7 A typical (ΔL/L<10%). The DC resistance is 0.255 Ω typical and 0.37 Ω maximum. The self-resonant frequency is 16 MHz typical. The component can operate at voltages up to 120 V DC and over a temperature range of -40°C to +125°C. It comes in a nonstandard SMD package with dimensions of 6.60 mm x 4.45 mm x 2.92 mm. The inductor is compliant with RoHS, REACH, and Halogen Free standards, and has a moisture sensitivity level of 1 (unlimited). Designed for general electronic equipment, this inductor is suitable for power supply filtering, DC-DC converters, and other surface mount power applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.43 | $2.43 |
| 10+ | $2.32 | $2.32 |
| 50+ | $2.09 | $2.09 |
| 100+ | $1.94 | $1.94 |
| 250+ | $1.86 | $1.86 |
| 500+ | $1.70 | $1.70 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
22 µH at 100 kHz/100 mV.
0.8 A maximum (ΔT=15 K).
0.255 Ω typical, 0.37 Ω maximum at 20°C.
16 MHz typical.
Nonstandard SMD package, dimensions 6.60 mm x 4.45 mm x 2.92 mm.
-40°C to +125°C.
No, it is unshielded.
