| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Shielding | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

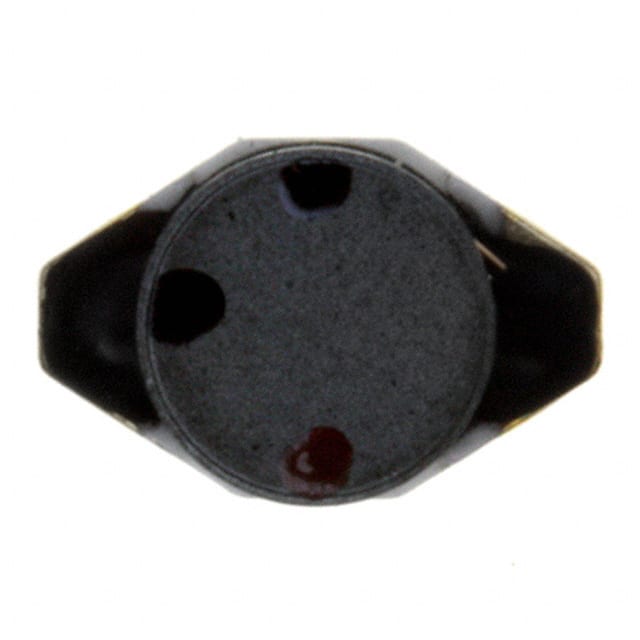

The 7445510 is a wirewound drum core ferrite inductor from Würth Elektronik's WE-PD4 series. It offers 10µH inductance with ±20% tolerance, rated current of 1.2A (ΔT=15K), and saturation current of 1.1A typical. DC resistance is 0.121Ω typical, 0.16Ω max. Self-resonant frequency is 26MHz typical. Maximum operating voltage is 120V DC. Operating temperature range is -40°C to +125°C. It is unshielded and surface mount in a nonstandard package measuring 6.6mm x 4.45mm x 2.92mm. Compliant with RoHS, REACH, and Halogen Free. MSL level 1. Suitable for general electronic equipment; not authorized for safety-critical applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.44 | $2.44 |
| 10+ | $2.33 | $2.33 |
| 50+ | $2.10 | $2.10 |
| 100+ | $1.95 | $1.95 |
| 500+ | $1.87 | $1.87 |
| 1,000+ | $1.71 | $1.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 µH with ±20% tolerance.
1.2 A maximum at ΔT=15K.
0.121 Ω typical, 0.16 Ω maximum.
26 MHz typical.
Surface mount, nonstandard package.
-40°C to +125°C.
No, it is unshielded.
