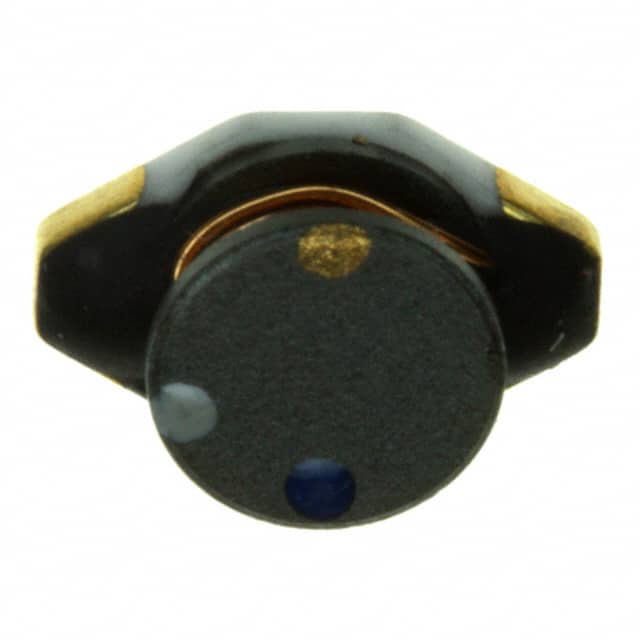

74455068 Fixed inductor from Würth Elektronik, part 74455068, offering 6.8µH inductance with ±20% tolerance. Rated current 1.4A, DC resistance 0.13Ω max, surface mount in a nonstandard package.
Mfr Part #:

74455068

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Fixed inductor from Würth Elektronik, part 74455068, offering 6.8µH inductance with ±20% tolerance. Rated current 1.4A, DC resistance 0.13Ω max, surface mount in a nonstandard package.
✓ Total Stock: 203 pcs

74455068 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
203 pcs
On Request
203 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

74455068 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Failure Rate
Frequency
Halogen Free
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Operating Voltage
Shielding
Tolerance
Type
Width
View Similar Products (0)

74455068 Description

Short technical summary and product information.

The 74455068 is a fixed inductor from Würth Elektronik's WE-PD4 series, designed for surface mount applications. It features a ferrite core with drum core wirewound construction, providing 6.8 µH inductance at 100 kHz / 100 mV with ±20% tolerance. The inductor is rated for a maximum current of 1.4 A (ΔT = 15 K) and has a typical saturation current of 1.2 A at 10% inductance drop. DC resistance is 0.092 Ω typical and 0.13 Ω maximum at 20°C. The self-resonant frequency is 29 MHz typical, and the maximum operating voltage is 120 V DC.



This component is suitable for power supply filtering, DC-DC converter output smoothing, and EMI suppression in electronic devices. It operates over a temperature range of -40°C to +125°C and is compliant with RoHS and REACH directives. The package is a nonstandard surface mount format with dimensions 6.6 mm x 4.45 mm x 2.92 mm, requiring a specific land pattern for proper mounting.

74455068 Quick Information

Product Type: Fixed Inductor
Series: WE-PD4
Canonical Name: Fixed Inductor, 6.8 µH, 1.4 A, 130 mOhm, SMD, WE-PD4 Series
Subcategory: SMD Power Inductor

74455068 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL Level 1 (Unlimited)
REACH Status: REACH Conform or declared

74455068 Features

  • Inductance 6.8µH with ±20% tolerance.
  • Rated current 1.4A with 15K temperature rise.
  • DC resistance 0.13Ω maximum at 20°C.
  • Self-resonant frequency 29MHz typical.
  • Surface mount drum core wirewound inductor.

74455068 Applications

  • Used in power supply filtering circuits.
  • Ideal for DC-DC converter output smoothing.
  • Suitable for EMI suppression in electronic devices.
  • Applied in automotive electronics with wide temperature range.

74455068 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value of the 74455068 inductor?

6.8 µH at 100 kHz / 100 mV with ±20% tolerance.

What is the rated current of the 74455068?

1.4 A maximum with a temperature rise of 15 K.

What is the DC resistance of the 74455068?

Typical 0.092 Ω, maximum 0.13 Ω at 20°C.

What is the self-resonant frequency of the 74455068?

29 MHz typical.

What is the package type of the 74455068?

Surface mount, nonstandard package, dimensions 6.6mm x 4.45mm x 2.92mm.

What is the operating temperature range of the 74455068?

-40°C to +125°C.

What is the saturation current of the 74455068?

1.2 A typical at 10% inductance drop.
