| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
733 pcs
|
733 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature (referring to IR) | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Rated Current | |
| SVHC Present | |
| Saturation Current | |
| Shielding | |
| Storage Conditions | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

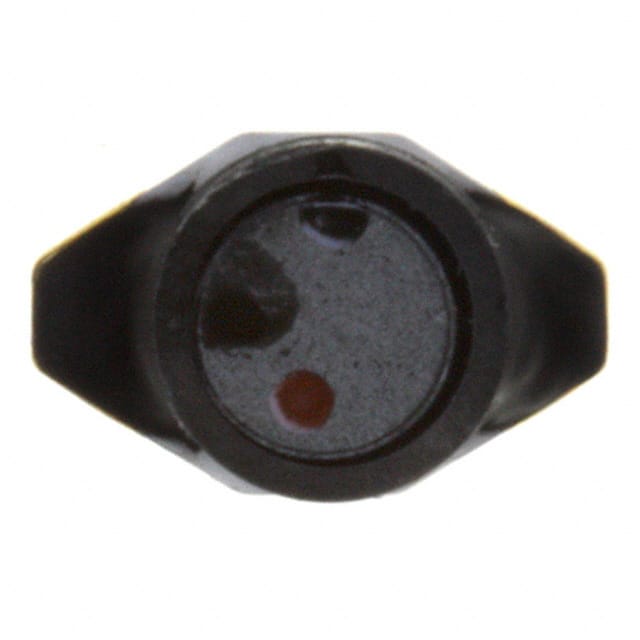

The Würth Elektronik 7445110 is a fixed inductor from the WE-PD3 series, featuring a shielded drum core wirewound construction. It is designed for use in power applications where magnetic shielding is required to reduce EMI.
Electrically, the inductor offers 10 µH inductance measured at 100 kHz/100 mV with ±20% tolerance. The rated current is 1 A maximum based on a 40 K temperature rise, while the saturation current is 0.45 A typical at 10% inductance drop. DC resistance is 0.056 Ω typical and 0.075 Ω maximum at 20°C. The self-resonant frequency is 30 MHz typical.
Mechanically, the component is surface mountable in a nonstandard package with dimensions 12.70 mm x 10.30 mm x 3.00 mm. The core material is ferrite, and the inductor is shielded. Operating temperature range is -40°C to 125°C, with ambient temperature for rated current limited to 85°C.
The part is compliant with RoHS (2011/65/EU & 2015/863), REACH, and Halogen Free (JEDEC JS709B) standards, with MSL 1. The datasheet specifies that this component is designed for general electronic equipment and is not authorized for use in high-safety applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.25 | $2.25 |
| 10+ | $2.15 | $2.15 |
| 50+ | $1.94 | $1.94 |
| 100+ | $1.80 | $1.80 |
| 250+ | $1.72 | $1.72 |
| 500+ | $1.49 | $1.49 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 µH at 100 kHz/100 mV, ±20% tolerance.
1 A maximum at 40 K temperature rise.
0.056 Ω typical, 0.075 Ω maximum at 20°C.
30 MHz typical.
12.70 mm x 10.30 mm x 3.00 mm, surface mount nonstandard package.
Yes, it is shielded.
-40°C to 125°C.
