| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
213 pcs
|
213 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

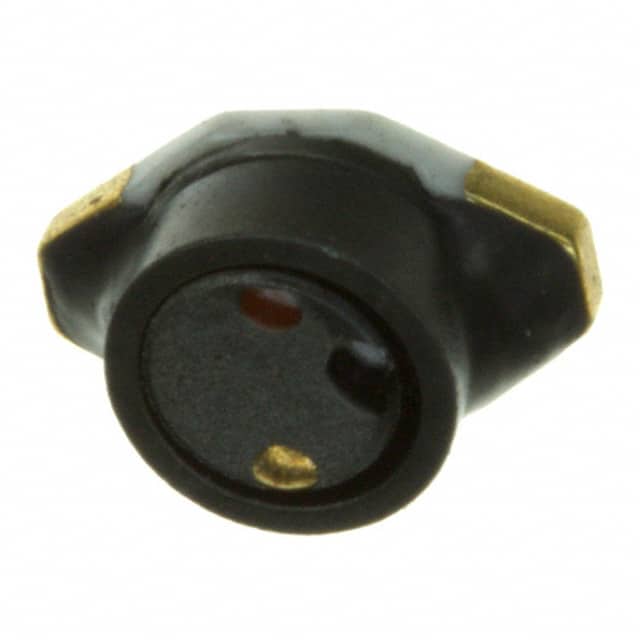

The 7445101 is a surface-mount shielded power inductor from Würth Elektronik's WE-PD3 series. It has an inductance of 1 µH with ±20% tolerance, measured at 100 kHz and 100 mV. The inductor is rated for a continuous current of 3A maximum based on a 40°C temperature rise, with a typical saturation current of 1.62 A. Its DC resistance is typically 0.014 Ω and maximum 0.04 Ω. The self-resonant frequency is 83 MHz typical.
This inductor operates over an ambient temperature range of -40°C to +85°C (referring to rated current) and an extended operating temperature range of -40°C to +125°C. It is RoHS compliant, REACH conform, and halogen-free per JEDEC JS709B. The moisture sensitivity level is MSL 1.
The component is supplied in a shielded SMD package with dimensions approximately 4.45 mm max length, 4.06 mm width, and 6.6 mm max height. The datasheet includes a recommended land pattern. It is designed for general electronic equipment and is suitable for power supply and DC-DC converter applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.26 | $2.26 |
| 10+ | $2.15 | $2.15 |
| 50+ | $1.94 | $1.94 |
| 100+ | $1.80 | $1.80 |
| 250+ | $1.72 | $1.72 |
| 500+ | $1.58 | $1.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 1 µH with ±20% tolerance, measured at 100 kHz and 100 mV.
The rated current is 3 A maximum, based on a 40 K temperature rise.
The DC resistance is typically 0.014 Ω and maximum 0.04 Ω at 20°C.
The self-resonant frequency is 83 MHz typical.
The 7445101 is a surface-mount device (SMD) with a shielded package.
The operating temperature range is -40°C to +125°C, with ambient temperature for rated current at -40°C to +85°C.
The typical saturation current is 1.62 A, with inductance drop less than 10%.
