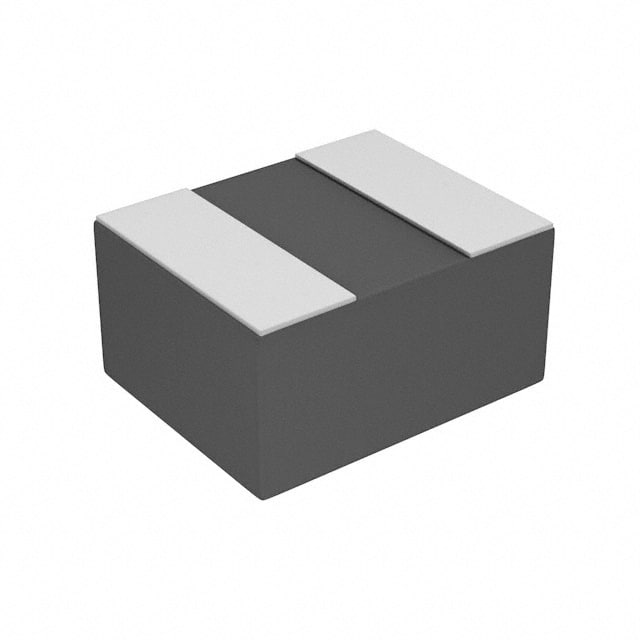

The Würth Elektronik 74438343022 is a shielded molded SMD power inductor from the WE-MAPI series. It offers a nominal inductance of 2.2 µH with ±20% tolerance, measured at 100 kHz and 10 mA. The component is rated for a maximum DC current of 1.65 A (ΔT=40K) and features a saturation current of 1.65 A typical at 10% inductance drop and 3.3 A typical at 30% drop.
With a typical DC resistance of 225 mΩ and a maximum of 270 mΩ, this inductor provides efficient power handling. Its self-resonant frequency is 70 MHz, and it can operate at voltages up to 80 V DC. The operating temperature range spans from -40°C to +125°C, making it suitable for demanding environments.
The inductor is housed in an 0806 (2016 Metric) surface-mount package with a maximum height of 1.00 mm, ideal for space-constrained designs. It is AEC-Q200 qualified (Grade 1) and complies with RoHS, REACH, and halogen-free requirements, ensuring reliability for automotive and industrial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
| 10+ | $1.43 | $1.43 |
| 50+ | $1.33 | $1.33 |
| 100+ | $1.25 | $1.25 |
| 500+ | $1.17 | $1.17 |
| 3,000+ | $0.91 | $0.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 2.2 µH with a tolerance of ±20%, measured at 100 kHz and 10 mA.
The rated current is 1.65 A maximum, based on a temperature rise of 40K (ΔT=40K).
The typical DC resistance is 225 mΩ, with a maximum of 270 mΩ at 20°C.
The self-resonant frequency is 70 MHz typical.
It is available in an 0806 (2016 Metric) surface-mount package with dimensions 2.00 mm x 1.60 mm and a maximum height of 1.00 mm.
Yes, it is AEC-Q200 qualified (Grade 1).
