| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,905 pcs
|
4905 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| SVHC Present | |
| Saturation Current (Typical @ |ΔL/L| < 10%) | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

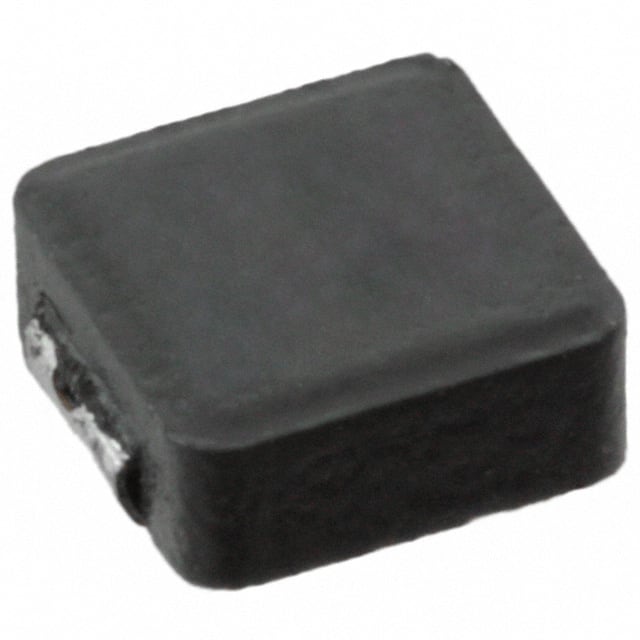

This is a Würth Elektronik WE-LHMI series SMT power inductor with a nominal inductance of 0.22 µH and ±30% tolerance, measured at 100 kHz / 10 mA. It features a performance rated current of 11.4 A maximum (ΔT = 40 K) and saturation currents of 10.8 A typical at 10% inductance drop and 22.3 A typical at 30% drop. The DC resistance is 7.3 mΩ maximum and 6.6 mΩ typical. The self-resonant frequency is 195 MHz typical, and the maximum operating voltage is 120 V DC.
The inductor is shielded and molded with an iron powder core, housed in a nonstandard SMD package measuring 4.45 mm x 4.06 mm x 2.0 mm. It operates over a temperature range of -40°C to +125°C and is suitable for high-current DC/DC converters, FPGA POL converters, and battery-powered devices. The component is RoHS, REACH, and Halogen Free compliant, with MSL level 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.35 | $2.35 |
| 10+ | $2.29 | $2.29 |
| 50+ | $2.10 | $2.10 |
| 100+ | $2.01 | $2.01 |
| 500+ | $1.91 | $1.91 |
| 1,000+ | $1.82 | $1.82 |
| 3,000+ | $1.54 | $1.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 0.22 µH with a tolerance of ±30%, measured at 100 kHz / 10 mA.
The performance rated current is 11.4 A maximum (ΔT = 40 K).
The maximum DC resistance is 7.3 mΩ, typical is 6.6 mΩ at 20°C.
The self-resonant frequency is 195 MHz typical.
The package dimensions are 4.45 mm length, 4.06 mm width, and 2.0 mm height.
Yes, it is shielded.
The operating temperature range is -40°C to +125°C.
