| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature (referring to IR) | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Performance Rated Current | |
| Rated Inductance | |
| Ratings | |
| Saturation Current (Typical @ |ΔL/L| < 10%) | |
| Shielding | |
| Supplier Device Package | |
| Tolerance | |
| Type | |
| Width |

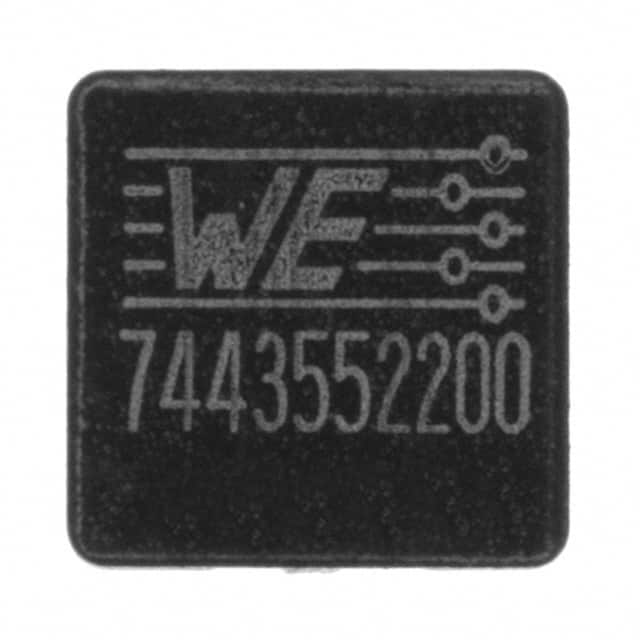

The 7443552200 from Würth Elektronik is a high-current, shielded surface mount (SMD) power inductor belonging to the WE-HCI series. It offers an inductance of 2 µH with a tolerance of ±20% and a rated current of 11 A, making it suitable for power conversion and filtering applications. The component also features a low DC resistance of 7.3 mΩ at 20 °C, contributing to high efficiency.
This inductor operates across a wide temperature range from -40°C to 155°C, ensuring robust performance in various environmental conditions. Its compact dimensions of 10.5 mm length, 10.2 mm width, and 4 mm height, combined with surface mount capability, allow for integration into space-constrained designs. The shielded construction helps minimize electromagnetic interference.
Compliance with RoHS, REACH, and Halogen Free standards, along with a Moisture Sensitivity Level (MSL) of 1, indicates its suitability for environmentally conscious designs and standard assembly processes. The typical self-resonant frequency is 53 MHz.
The inductance of the 7443552200 is 2 µH, measured at 100 kHz/100 mV, with a tolerance of ±20%.
The rated current of the 7443552200 is 11 A maximum, at a temperature rise (ΔT) of 50 K.
The DC Resistance (DCR) of the 7443552200 is 7.3 mΩ at 20 °C.
The typical self-resonant frequency (fres) of the 7443552200 is 53 MHz.
The operating temperature range for the 7443552200 is -40°C up to +155°C.
The 7443552200 has a length of 10.5 mm, a width of 10.2 mm, and a height of 4 mm.
Yes, the 7443552200 is RoHS compliant according to the datasheet.
