| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Shielding | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

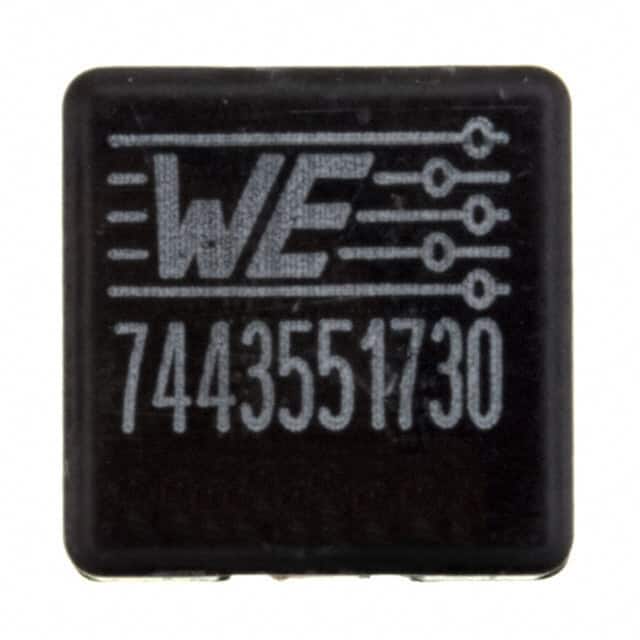

The 7443551730 is a shielded wirewound inductor from Würth Elektronik's WE-HCI series. It offers a nominal inductance of 7.3 µH with ±20% tolerance, measured at 100 kHz. The component is rated for a continuous current of 13 A (ΔT=50K) and can handle up to 16.5 A under performance conditions per IEC 62024-2-2020. Saturation current is 5.5 A at 10% inductance drop and 12 A at 30% drop.
With a DC resistance of 5.9 mΩ and a self-resonant frequency of 28 MHz, this inductor is suitable for high-current power applications. The shielded construction minimizes electromagnetic interference. It is designed for surface mount assembly in a nonstandard 1365 package measuring 13.00 mm x 12.80 mm x 6.50 mm.
The operating temperature range spans -40°C to +155°C, and the component is AEC-Q200 qualified for automotive use. It is RoHS3 compliant and has MSL 1 (unlimited) moisture sensitivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.48 | $3.48 |
| 10+ | $3.41 | $3.41 |
| 50+ | $3.15 | $3.15 |
| 100+ | $3.02 | $3.02 |
| 200+ | $2.82 | $2.82 |
| 400+ | $2.38 | $2.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
7.3 µH at 100 kHz/100 mV, ±20% tolerance.
13 A maximum at ΔT=50K, with a performance rated current of 16.5 A at ΔT=40K per IEC 62024-2-2020.
5.9 mΩ nominal at 20°C.
28 MHz typical.
Nonstandard 1365 package, 13.00 mm x 12.80 mm x 6.50 mm.
5.5 A typical at 10% inductance drop, 12 A typical at 30% drop.
-40°C to +155°C.
