| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
322 pcs
|
322 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| SVHC Present | |
| Saturation Current (Typical @ 10% inductance drop) | |
| Saturation Current (Typical @ 30% inductance drop) | |
| Shielding | |
| Supplier Device Package | |
| Tolerance | |
| Type | |
| Width |

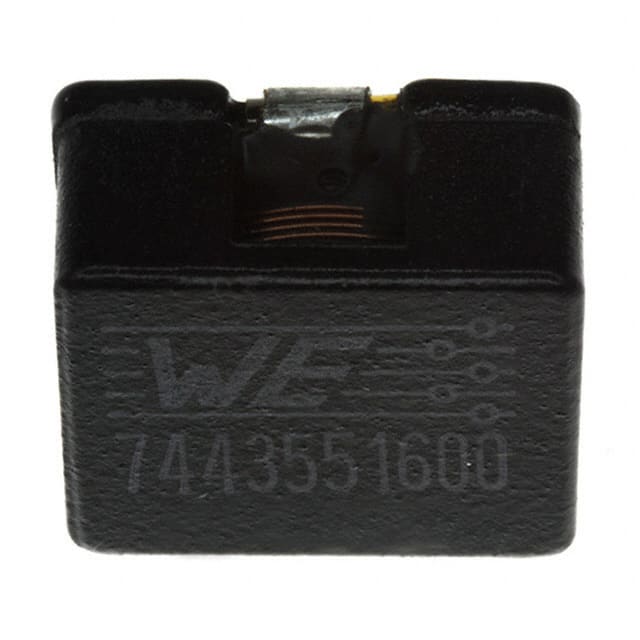

The Würth Elektronik 7443551600 is a shielded wirewound inductor from the WE-HCI series, designed for high current applications. It offers an inductance of 6 µH with ±20% tolerance, measured at 100 kHz/100 mV. The component is rated for a continuous current of 12 A (ΔT=50K) and features a low DC resistance of 8.4 mOhm, minimizing power losses.
This inductor is AEC-Q200 qualified, making it suitable for automotive and other harsh environment applications. It operates over a temperature range of -40°C to +155°C. The shielded construction helps reduce electromagnetic interference, making it ideal for use in power supplies, DC-DC converters, and EMI filtering circuits.
The component is surface mounted in a nonstandard 1365 package, with dimensions 13.00 mm x 12.80 mm x 6.50 mm. It is supplied in tape and reel packaging (quantity not verified). The self-resonant frequency is typically 22 MHz, and saturation current is 6 A typ at 10% inductance drop and 14 A typ at 30% drop.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.48 | $3.48 |
| 10+ | $3.41 | $3.41 |
| 50+ | $3.15 | $3.15 |
| 100+ | $3.02 | $3.02 |
| 200+ | $2.82 | $2.82 |
| 400+ | $2.38 | $2.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 6 µH ±20% at 100 kHz/100 mV.
The rated current is 12 A (ΔT=50K).
The DC resistance is 8.4 mOhm.
The self-resonant frequency is 22 MHz typical.
The package is nonstandard SMD, supplier device package 1365, with dimensions 13.00 mm x 12.80 mm x 6.50 mm.
Yes, it has a shielded construction to reduce EMI.
Yes, it is AEC-Q200 rated for automotive applications.
