| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
76 pcs
|
76 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature (for Rated Current) | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Inductance (Typical @ 100 kHz/ 100 mV/ 17.0 A) | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Rated Current (Maximum @ ΔT = 50 K) | |
| Rated Current (Maximum @ ΔT=40 K (IEC 62024-2-2020) | |
| Ratings | |
| Saturation Current (Typical @ |ΔL/L| < 10%) | |
| Saturation Current (Typical @ |ΔL/L| < 30%) | |
| Self Resonant Frequency | |
| Shielding | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

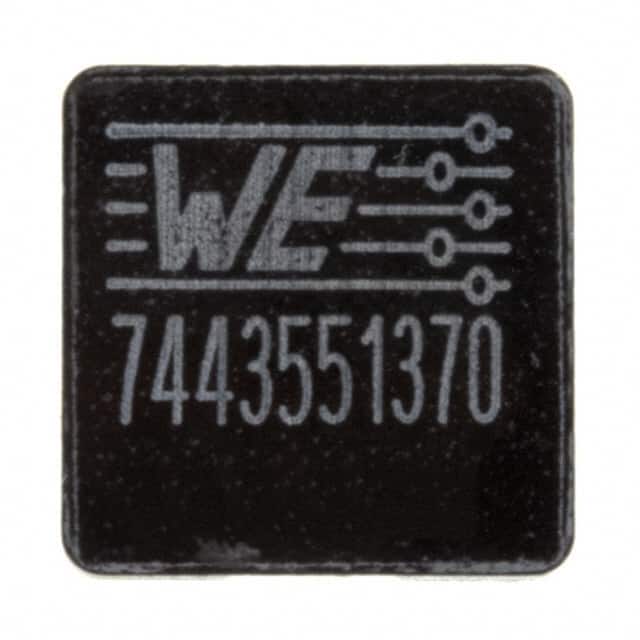

This is a shielded wirewound inductor from Würth Elektronik's WE-HCI series, designed for high current applications. It offers a nominal inductance of 3.7 µH with ±20% tolerance, measured at 100 kHz and 100 mV. The rated inductance at 17 A is 2.6 µH typical.
The inductor is rated for a maximum current of 17 A with a temperature rise of 50 K, and a performance rated current of 18.3 A at 40 K rise per IEC 62024-2-2020. Saturation current is 7 A typical at 10% inductance drop and 16 A typical at 30% drop. DC resistance is 4.9 mΩ ±10%, and self-resonant frequency is 26 MHz typical.
The component is AEC-Q200 qualified for automotive applications, with an operating temperature range of -40°C to 155°C. It is shielded to minimize EMI, and comes in a surface mount package measuring 13.00 mm x 12.80 mm x 6.50 mm. Moisture sensitivity level is MSL 1 (unlimited), and it is RoHS and REACH compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.48 | $3.48 |
| 10+ | $3.41 | $3.41 |
| 50+ | $3.15 | $3.15 |
| 100+ | $3.02 | $3.02 |
| 200+ | $2.82 | $2.82 |
| 400+ | $2.38 | $2.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance is 3.7 µH with ±20% tolerance, measured at 100 kHz and 100 mV.
The rated current is 17 A max at ΔT=50K, and the performance rated current is 18.3 A max at ΔT=40K per IEC 62024-2-2020.
The DC resistance is 4.9 mΩ nominal with ±10% tolerance at 20°C.
The self-resonant frequency is 26 MHz typical.
The package is a nonstandard surface mount case measuring 13.00 mm x 12.80 mm x 6.50 mm.
Yes, it is shielded.
Yes, it has AEC-Q200 rating.
