| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature (referring to I_RP) | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Performance Rated Current (ΔT=40K) | |
| Rated Inductance | |
| Ratings | |
| SVHC Present | |
| Saturation Current (Typical @ |ΔL/L| < 10%) | |
| Shielding | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

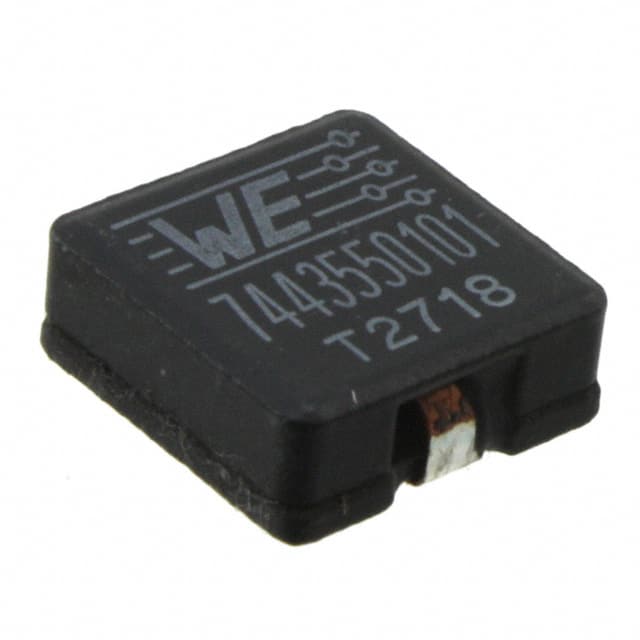

The Würth Elektronik 7443550101 is a WE-HCI series SMT high current inductor with a shielded wirewound construction. It offers an inductance of 10 µH at 100 kHz/10 mA with ±20% tolerance. The component is rated for a continuous current of 8.5 A maximum (ΔT=50K) and features a low DC resistance of 14.1 mOhm typical at 20°C. The self-resonant frequency is 18 MHz typical.
Designed for high current applications, the inductor provides saturation current ratings of 5 A typical at 10% inductance drop and 10 A typical at 30% drop. It is AEC-Q200 qualified, making it suitable for automotive environments. The operating temperature range spans -40°C to +155°C.
The inductor is housed in a surface mount package measuring 13.0 x 12.8 x 5.0 mm (supplier package 1350). The shielded construction helps reduce electromagnetic interference, and the component is RoHS and REACH compliant with MSL level 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.48 | $3.48 |
| 10+ | $3.41 | $3.41 |
| 50+ | $3.15 | $3.15 |
| 100+ | $3.02 | $3.02 |
| 200+ | $2.82 | $2.82 |
| 400+ | $2.38 | $2.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 10 µH at 100 kHz/10 mA with ±20% tolerance.
The rated current is 8.5 A maximum (ΔT=50K).
The DC resistance is 14.1 mOhm typical at 20°C.
The self-resonant frequency is 18 MHz typical.
Surface mount package measuring 13.0 x 12.8 x 5.0 mm (supplier package 1350).
Yes, it is AEC-Q200 qualified for automotive applications.
The operating temperature range is -40°C to +155°C.
