| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| AEC-Q200 | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Rated Current (Performance Rated Current) | |
| Saturation Current (Typical @ |ΔL/L| < 10%) | |
| Saturation Current (Typical @ |ΔL/L| < 30%) | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

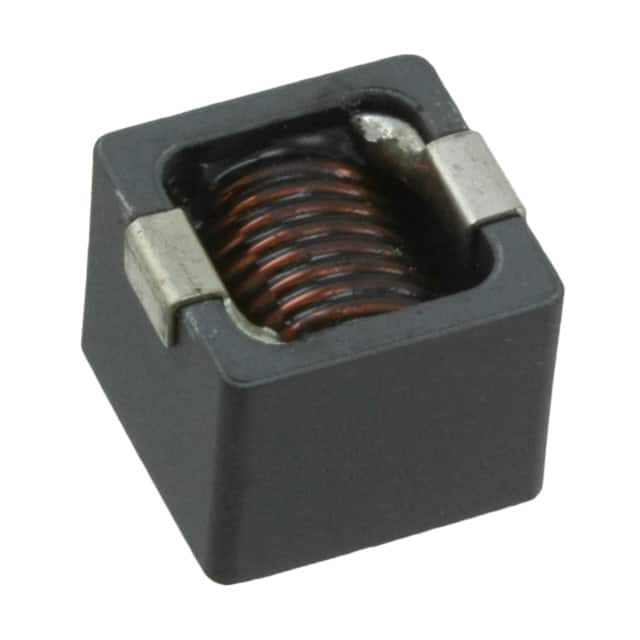

The 7443321000 is a shielded SMD power inductor from Würth Elektronik's WE-HCC series. It features a drum core, wirewound construction with a ferrite core, providing an inductance of 10 µH ±20% measured at 100 kHz/10 mA.
This inductor is rated for a performance rated current of 9.6 A maximum (ΔT=40 K) and has typical saturation currents of 9.1 A (10% drop) and 11.3 A (30% drop). The DC resistance is 15.35 mΩ typical and 16.7 mΩ maximum. The self-resonant frequency is 29 MHz typical, and the maximum operating voltage is 120 V.
The component is housed in a nonstandard SMD package measuring 12.1 mm x 11.4 mm x 10.0 mm. It is shielded for EMI reduction and operates over a temperature range of -40°C to 125°C. The inductor is AEC-Q200 Grade 1 qualified, RoHS compliant, REACH conform, and halogen free.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.62 | $2.62 |
| 10+ | $2.54 | $2.54 |
| 50+ | $2.41 | $2.41 |
| 100+ | $2.32 | $2.32 |
| 300+ | $2.13 | $2.13 |
| 600+ | $1.83 | $1.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 µH ±20% at 100 kHz/10 mA.
9.6 A maximum (ΔT=40 K).
15.35 mΩ typical, 16.7 mΩ maximum at 20°C.
29 MHz typical.
12.1 mm x 11.4 mm x 10.0 mm, nonstandard SMD package.
Yes, AEC-Q200 Grade 1.
-40°C to 125°C.
