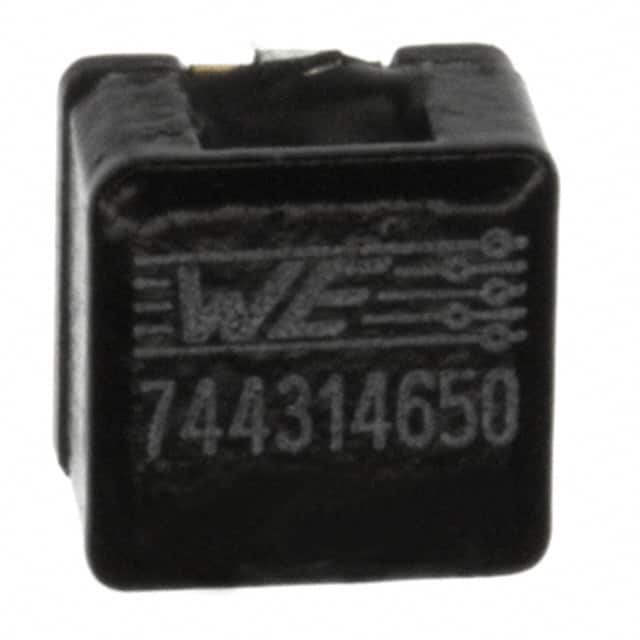

744314650 Fixed inductor from Würth Elektronik, 6.5µH inductance, 6A rated current, 21.5mΩ DCR, shielded, SMD package 7050. AEC-Q200 qualified.
Mfr Part #:

744314650

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Fixed inductor from Würth Elektronik, 6.5µH inductance, 6A rated current, 21.5mΩ DCR, shielded, SMD package 7050. AEC-Q200 qualified.
✓ Total Stock: 8 pcs
$ Price Range: $2.58 - $3.80

744314650 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

744314650 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Halogen Free
Height
Inductance
Industrial Grade
Length
Mounting Type
Operating Temperature
Ratings
SVHC Present
Shielding
Supplier Device Package
Tape & Reel
Tolerance
Type
Width
View Similar Products (0)

744314650 Description

Short technical summary and product information.

The Würth Elektronik 744314650 is a high current inductor from the WE-HCI series, designed for surface mount applications. It features an inductance of 6.5µH ±20% measured at 100kHz/100mV, with a rated current of 6A (ΔT=50K) and a saturation current of 6A typical at 30% inductance drop. The DC resistance is 21.5mΩ ±10% and the self-resonant frequency is 50MHz typical. The inductor is shielded to reduce EMI and is housed in a 7050 (7.00mm x 6.90mm x 5.00mm) nonstandard SMD package. It operates over a temperature range of -40°C to +150°C and is AEC-Q200 qualified for automotive applications. The component is RoHS and REACH compliant with MSL level 1.

744314650 Quick Information

Product Type: High Current Inductor
Series: 7050
Canonical Name: WE-HCI SMT High Current Inductor 7050 (744314650)
Subcategory: Fixed Inductor

744314650 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 - Unlimited
REACH Status: Compliant
Lead Free: Yes

744314650 Estimated Pricing

Qty Low High
1+ $3.80 $3.80
10+ $3.72 $3.72
50+ $3.44 $3.44
100+ $3.29 $3.29
500+ $3.08 $3.08
1,000+ $2.58 $2.58

Estimated market price range - modelled values for guidance only, not live distributor offers.

744314650 Features

  • Shielded SMD construction for reduced EMI.
  • High current rating up to 6A.
  • AEC-Q200 qualified for automotive.
  • Low DCR of 21.5mΩ.
  • Wide operating temperature range -40°C to +150°C.

744314650 Applications

  • Used in DC-DC converters and power supplies.
  • Suitable for automotive engine control modules.
  • Ideal for high current filtering applications.
  • Common in LED lighting and battery management systems.

744314650 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the 744314650?

The inductance is 6.5µH ±20% at 100 kHz, 100 mV.

What is the rated current of the 744314650?

The rated current is 6 A max at ΔT = 50 K, and 6.6 A max at ΔT = 40 K.

What is the DC resistance of the 744314650?

The DC resistance is 21.5 mΩ ±10% at 20 °C.

What is the self-resonant frequency of the 744314650?

The self-resonant frequency is 50 MHz typical.

What is the package size of the 744314650?

The inductor is supplied in a 7050 SMD package: 7.00 mm x 6.90 mm x 5.00 mm (length x width x height).

What is the saturation current of the 744314650?

The saturation current is 2 A typ at 10% inductance drop and 6 A typ at 30% inductance drop.

What is the operating temperature range of the 744314650?

The operating temperature range is -40°C to +150°C.
