| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
564 pcs
|
564 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| DC Resistance Tolerance | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Performance Rated Current (ΔT=40K) | |
| Rated Current (ΔT=50K) | |
| Rated Inductance | |
| Ratings | |
| Saturation Current (Typical @ |ΔL/L| < 10%) | |
| Saturation Current (Typical @ |ΔL/L| < 30%) | |
| Shielding | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

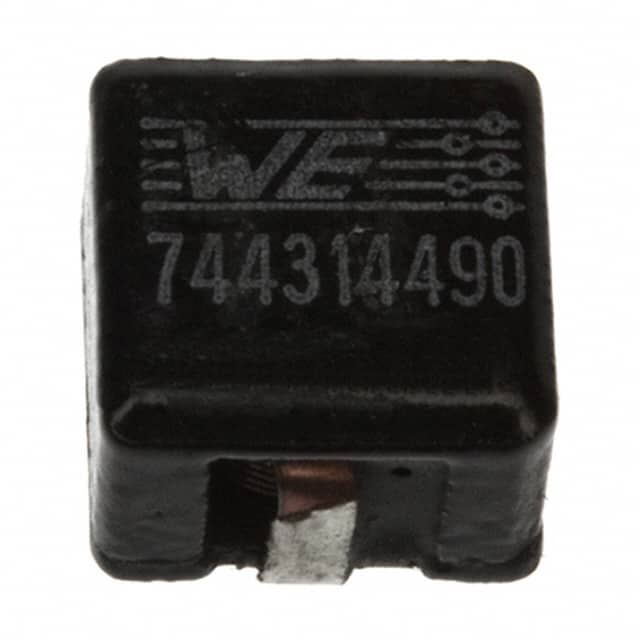

The Würth Elektronik 744314490 is a shielded wirewound inductor from the WE-HCI series, designed for high current applications. It offers a nominal inductance of 4.9 µH at 100 kHz/100 mV with ±20% tolerance. The rated current is 6.5 A max at a temperature rise of ΔT=50K, with a performance rated current of 8.3 A at ΔT=40K per IEC 62024-2. DC resistance is 14.5 mΩ ±10% at 20°C.
Saturation current is specified at two levels: 2.2 A typical for 10% inductance drop and 6.5 A typical for 30% drop. Self-resonant frequency is 56 MHz typical. The inductor is shielded to minimize EMI and operates over a temperature range of -40°C to +150°C. It is qualified to AEC-Q200 for automotive applications.
The component is housed in a 7050 nonstandard SMD package with dimensions 7.0 mm x 6.9 mm x 5.0 mm. It is RoHS3 compliant, REACH conform, and has MSL level 1 (unlimited). Termination style is SMD/SMT.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.80 | $3.80 |
| 10+ | $3.72 | $3.72 |
| 50+ | $3.44 | $3.44 |
| 100+ | $3.29 | $3.29 |
| 500+ | $3.08 | $3.08 |
| 1,000+ | $2.58 | $2.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance is 4.9 µH at 100 kHz/100 mV with ±20% tolerance.
Rated current is 6.5 A max at ΔT=50K. Performance rated current is 8.3 A max at ΔT=40K per IEC 62024-2.
DC resistance is 14.5 mΩ ±10% at 20°C.
Self-resonant frequency is 56 MHz typical.
The inductor is in a 7050 nonstandard SMD package measuring 7.0 mm x 6.9 mm x 5.0 mm.
Yes, it is shielded.
Operating temperature is -40°C to +150°C.
