| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
679 pcs
|
679 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
679 pcs
|
679 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
575 pcs
|
575 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
520 pcs
|
520 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature (referring to IRP) | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Performance Rated Current (ΔT = 40 K) | |
| Rated Inductance (100 kHz, 100 mV, 9.0 A) | |
| Ratings | |
| SVHC Present | |
| Saturation Current (Typical @ |ΔL/L| < 10%) | |
| Shielding | |
| Storage Conditions | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

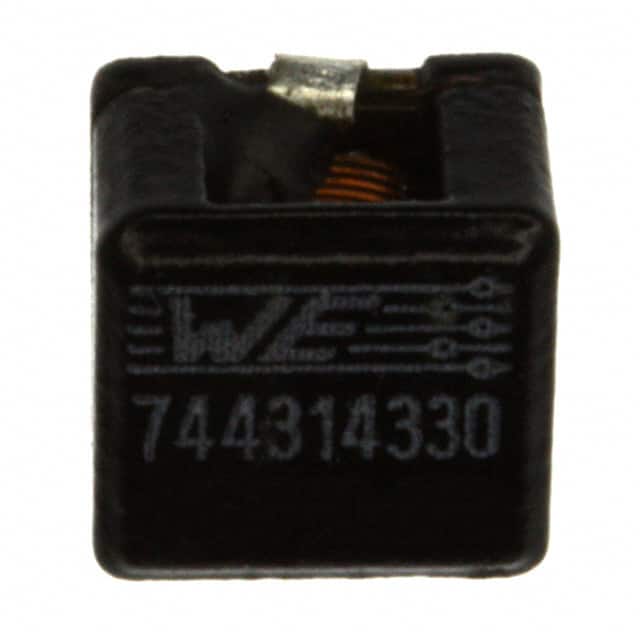

The Würth Elektronik 744314330 is a shielded wirewound fixed inductor from the WE-HCI series. It offers a nominal inductance of 3.3 µH with ±20% tolerance, tested at 100 kHz and 100 mV. The component is rated for a maximum current of 9 A (ΔT = 50 K) and a performance rated current of 10.9 A (ΔT = 40 K per IEC 62024-2-2020). Typical saturation currents are 3.2 A at 10% inductance drop and 8 A at 30% drop. DC resistance is 9 mOhm ±10% and the self-resonant frequency is 65 MHz.
The inductor is housed in a nonstandard 7050 surface mount package measuring 7.0 mm x 6.9 mm with a height of 5.0 mm. It operates over -40°C to +150°C and meets AEC-Q200 qualification for automotive applications. The component is RoHS and REACH compliant with MSL level 1. It is designed for general electronic equipment and can be used in power supply and high current filtering circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.80 | $3.80 |
| 10+ | $3.72 | $3.72 |
| 50+ | $3.44 | $3.44 |
| 100+ | $3.29 | $3.29 |
| 500+ | $3.08 | $3.08 |
| 1,000+ | $2.58 | $2.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance is 3.3 µH at 100 kHz/100 mV with ±20% tolerance.
The rated current is 9 A maximum at ΔT = 50 K. The performance rated current per IEC 62024-2-2020 is 10.9 A maximum at ΔT = 40 K.
The DC resistance is 9 mΩ ±10% at 20 °C.
The typical self-resonant frequency is 65 MHz.
Yes, it meets AEC-Q200 qualification.
