| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
715 pcs
|
715 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
516 pcs
|
516 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
516 pcs
|
516 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Performance Rated Current | |
| Rated Inductance | |
| Ratings | |
| Saturation Current (Typical @ |ΔL/L| < 10%) | |
| Shielding | |
| Storage Conditions | |
| Supplier Device Package | |
| Tolerance | |
| Type | |
| Width |

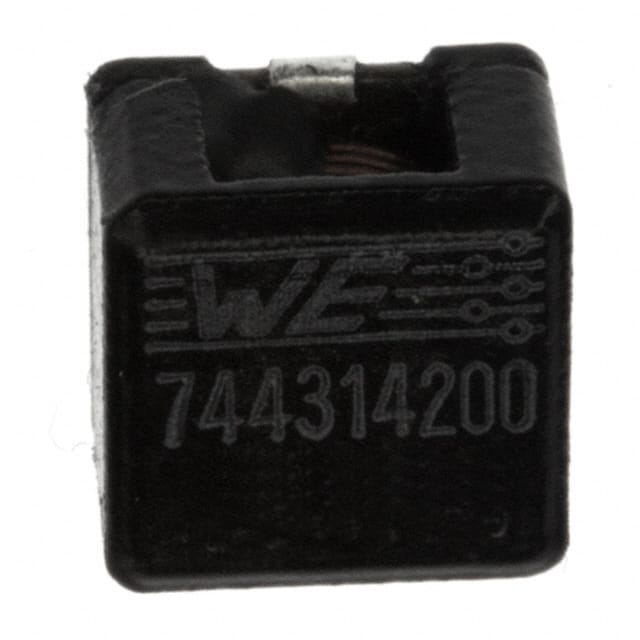

The 744314200 is a shielded wirewound inductor from Würth Elektronik's WE-HCI series, designed for high current applications. It features a nominal inductance of 2 µH at 100 kHz/100 mV with ±20% tolerance. The rated current is 11.5 A (ΔT=50 K) with a performance rated current of 13.8 A (ΔT=40 K). Saturation current is 4.5 A typical at 10% inductance drop and 9 A typical at 30% drop. The DC resistance is 5.85 mΩ at 20°C, and the self-resonant frequency is 68 MHz typical.
This inductor is housed in a nonstandard 7050 surface mount package measuring 7.00 mm x 6.90 mm x 5.00 mm. It is shielded for EMI reduction and has an operating temperature range of -40°C to +150°C. The ambient temperature is -40°C to +100°C when referring to the performance rated current. Storage conditions are below 40°C and 75% relative humidity.
The product is AEC-Q200 qualified for automotive applications and complies with RoHS and REACH directives. Moisture Sensitivity Level is 1 (unlimited). The datasheet includes a recommended land pattern for PCB design. This inductor is suitable for DC-DC converters, power supplies, and EMI filtering circuits where high current and low resistance are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.80 | $3.80 |
| 10+ | $3.72 | $3.72 |
| 50+ | $3.44 | $3.44 |
| 100+ | $3.29 | $3.29 |
| 500+ | $3.08 | $3.08 |
| 1,000+ | $2.58 | $2.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal inductance is 2 µH at 100 kHz/100 mV with a tolerance of ±20%.
The rated current is 11.5 A maximum at ΔT=50 K, and the performance rated current is 13.8 A maximum at ΔT=40 K.
The DC resistance is 5.85 mΩ at 20°C.
The self-resonant frequency is 68 MHz typical.
It is a nonstandard 7050 surface mount package with dimensions 7.00 mm x 6.90 mm x 5.00 mm.
Saturation current is 4.5 A typical at 10% inductance drop and 9 A typical at 30% inductance drop.
The operating temperature range is -40°C to +150°C.
