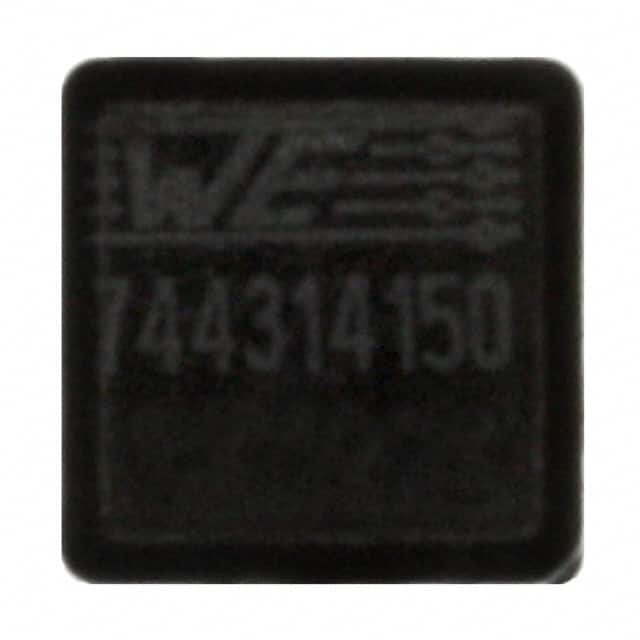

744314150 744314150 is a fixed inductor from Würth Elektronik. It offers 1.5µH inductance, 13A rated current, and 4.3mOhm DCR in a 7050 SMD package.
Mfr Part #:

744314150

Available from 2 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
744314150 is a fixed inductor from Würth Elektronik. It offers 1.5µH inductance, 13A rated current, and 4.3mOhm DCR in a 7050 SMD package.
✓ Total Stock: 1,149 pcs
$ Price Range: $2.58 - $3.80

744314150 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
774 pcs
On Request
774 pcs On Request 1 On Request On Request On Request On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
375 pcs
On Request
375 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

744314150 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Mounting Type
Operating Temperature
Ratings
Shielding
Supplier Device Package
Tolerance
Type
Width
View Similar Products (0)

744314150 Description

Short technical summary and product information.

The 744314150 is a shielded wirewound power inductor from Würth Elektronik, part of the WE-HCI series. It features a nominal inductance of 1.5µH at 100kHz/100mV with ±20% tolerance. The rated current is 13A maximum at a 50K temperature rise, with a performance rated current of 16.4A at 40K rise. Saturation current is 4A typical at 10% inductance drop and 11A at 30% drop. DC resistance is 4.3mOhm nominal at 20°C. The self-resonant frequency is 110MHz typical.



The inductor is shielded to minimize EMI and is suitable for high-current applications. It operates over a temperature range of -40°C to 150°C and is AEC-Q200 qualified for automotive use. The device is surface mountable in a nonstandard 7050 package with dimensions 7.00mm x 6.90mm x 5.00mm. Moisture sensitivity level is MSL 1 per the datasheet.

744314150 Quick Information

Product Type: Fixed Inductor
Series: WE-HCI
Canonical Name: WE-HCI 744314150 SMT High Current Inductor
Subcategory: Shielded Wirewound Inductor

744314150 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

744314150 Estimated Pricing

Qty Low High
1+ $3.80 $3.80
10+ $3.72 $3.72
50+ $3.44 $3.44
100+ $3.29 $3.29
500+ $3.08 $3.08
1,000+ $2.58 $2.58

Estimated market price range - modelled values for guidance only, not live distributor offers.

744314150 Features

  • Wirewound shielded construction for low EMI.
  • Rated current of 13A at 50K temperature rise.
  • Low DCR of 4.3mOhm for high efficiency.
  • Wide temperature range -40°C to 150°C.
  • AEC-Q200 qualified for automotive use.

744314150 Applications

  • Power supplies for automotive electronics.
  • High current DC-DC converter applications.
  • EMI filtering in motor control circuits.
  • Industrial power management systems.

744314150 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance of the 744314150?

The nominal inductance is 1.5µH at 100kHz/100mV with ±20% tolerance.

What is the rated current of the 744314150?

The rated current is 13A maximum at 50K temperature rise, with a performance rated current of 16.4A at 40K rise.

What is the DC resistance of the 744314150?

The DC resistance is 4.3mOhm nominal at 20°C.

What is the self-resonant frequency of the 744314150?

The self-resonant frequency is 110MHz typical.

What is the package size of the 744314150?

The package is 7.00mm x 6.90mm x 5.00mm (supplier device package 7050).

What is the operating temperature range of the 744314150?

The operating temperature range is -40°C to 150°C.

Is the 744314150 AEC-Q200 qualified?

Yes, it is rated AEC-Q200.
