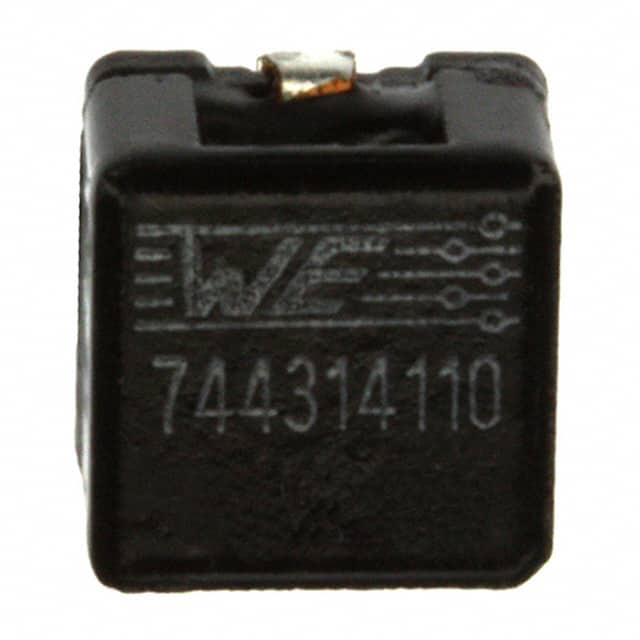

744314110 The 744314110 is a 1.1 µH shielded wirewound inductor from Würth Elektronik. It features a 15A rated current and 3.15 mΩ DCR in a 7050 package.
Mfr Part #:

744314110

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The 744314110 is a 1.1 µH shielded wirewound inductor from Würth Elektronik. It features a 15A rated current and 3.15 mΩ DCR in a 7050 package.
✓ Total Stock: 1 pcs
$ Price Range: $2.58 - $3.80

744314110 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

744314110 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Current Rating (Amps)
DC Resistance (DCR)
DC Resistance Tolerance
Frequency
Halogen Free
Height
Inductance
Inductance (Nominal @ 100 kHz, 100 mV)
Length
Mounting Type
Operating Temperature
Rated Current (Maximum @ ΔT = 40 K, IEC 62024-2-2020 Class D)
Ratings
Saturation Current (Typical @ |ΔL/L| < 10%)
Shielding
Supplier Device Package
Tolerance
Type
Width
View Similar Products (0)

744314110 Description

Short technical summary and product information.

The 744314110 is a surface-mount shielded wirewound inductor from Würth Elektronik's WE-HCI series. It offers an inductance of 1.1 µH with ±20% tolerance.



Electrical characteristics include a rated current of 15 A (ΔT=50 K) and a performance rated current of 19.6 A (ΔT=40 K per IEC 62024-2). Saturation current is 6 A at 10% inductance drop and 13 A at 30% drop. DC resistance is 3.15 mΩ ±10%. Self-resonant frequency is 135 MHz.



The inductor is housed in a 7050 (7.00 mm x 6.90 mm x 5.00 mm) nonstandard surface mount package. Operating temperature range is -40°C to +150°C. It is AEC-Q200 qualified for automotive applications and is RoHS and REACH compliant with MSL level 1.



Suitable for high current power supplies, DC-DC converters, and automotive electronics where low DCR and high current handling are required.

744314110 Quick Information

Product Type: Fixed Inductor
Series: WE-HCI
Canonical Name: 744314110 — 1.1 µH Shielded Wirewound Inductor
Subcategory: Fixed Inductor

744314110 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Compliant

744314110 Estimated Pricing

Qty Low High
1+ $3.80 $3.80
10+ $3.72 $3.72
50+ $3.44 $3.44
100+ $3.29 $3.29
500+ $3.08 $3.08
1,000+ $2.58 $2.58

Estimated market price range - modelled values for guidance only, not live distributor offers.

744314110 Features

  • 1.1 µH inductance with ±20% tolerance.
  • 15A rated current at 50K rise.
  • 3.15 mΩ low DC resistance.
  • Shielded wirewound construction.
  • AEC-Q200 automotive qualified.

744314110 Applications

  • High current DC-DC converter designs.
  • Automotive power supply filtering.
  • Low voltage high current POL modules.
  • Industrial power management systems.

744314110 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value?

1.1 µH at 100 kHz, 100 mV, with ±20% tolerance.

What is the rated current?

15 A maximum at ΔT=50 K, and 19.6 A performance rated current at ΔT=40 K per IEC 62024-2.

What is the DC resistance?

3.15 mΩ nominal with ±10% tolerance at 20°C.

What is the self-resonant frequency?

135 MHz typical.

What is the package size?

7050 (7.00 mm x 6.90 mm x 5.00 mm) nonstandard surface mount package.

Is this inductor AEC-Q200 qualified?

Yes, it is AEC-Q200 rated.

What is the operating temperature range?

-40°C to +150°C.
