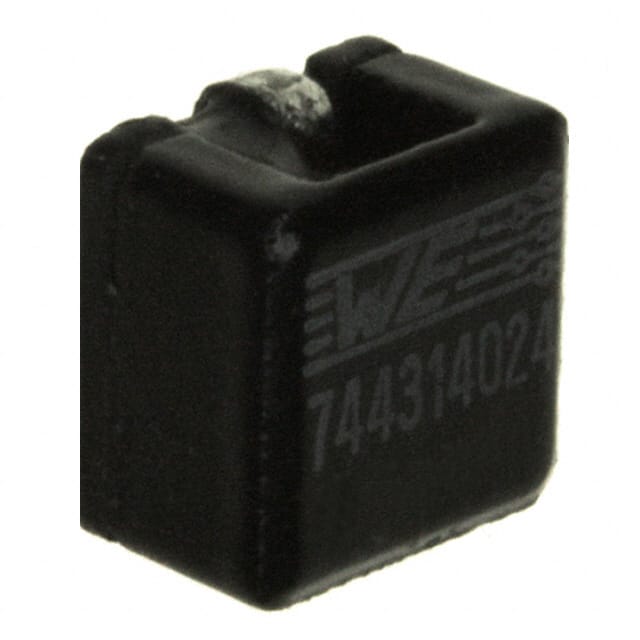

744314024 Fixed inductor, 240nH, 20A rated current, 1mOhm DCR, shielded, wirewound, SMD package 7050.
Mfr Part #:

744314024

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Fixed inductor, 240nH, 20A rated current, 1mOhm DCR, shielded, wirewound, SMD package 7050.
✓ Total Stock: 18 pcs
$ Price Range: $2.58 - $3.80

744314024 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
18 pcs
On Request
18 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

744314024 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Ambient Temperature
Automotive Grade
Current
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Halogen Free
Height
Inductance
Inductance (Typical @ 100 kHz, 100 mV, 20.0 A)
Industrial Grade
Length
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Rated Current (Maximum @ ΔT = 40 K)
Ratings
SVHC Present
Saturation Current (Typical @ |ΔL/L| < 10%)
Shielding
Size / Dimension
Supplier Device Package
Tolerance
Type
Width
View Similar Products (0)

744314024 Description

Short technical summary and product information.

The 744314024 is a high current shielded wirewound inductor from Würth Elektronik's WE-HCI series. It offers an inductance of 240nH (nominal) with ±20% tolerance, and a rated inductance of 0.19µH at 20A. The component is rated for a continuous current of 20A (ΔT=50K) and a performance rated current of 35.4A (ΔT=40K per IEC 62024-2-2020). Saturation current is 6A at 10% inductance drop and 28A at 30% drop. DC resistance is 1mOhm ±10%. Self-resonant frequency is 320MHz typical. The inductor is shielded for EMI reduction and features a wirewound construction. It is qualified to AEC-Q200 for automotive applications. Operating temperature range is -40°C to +150°C. The component is surface mount in a nonstandard 7050 package (7.00mm x 6.90mm x 5.00mm). RoHS3 compliant, MSL 1, and REACH unaffected.

744314024 Quick Information

Product Type: Fixed Inductor
Series: WE-HCI
Canonical Name: WE-HCI SMT High Current Inductor 240nH 20A
Subcategory: Fixed Inductor

744314024 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

744314024 Estimated Pricing

Qty Low High
1+ $3.80 $3.80
10+ $3.72 $3.72
50+ $3.44 $3.44
100+ $3.29 $3.29
500+ $3.08 $3.08
1,000+ $2.58 $2.58

Estimated market price range - modelled values for guidance only, not live distributor offers.

744314024 Features

  • Shielded wirewound construction for low EMI.
  • Rated current of 20A at 50K temperature rise.
  • Low DC resistance of 1mOhm for high efficiency.
  • AEC-Q200 qualified for automotive use.
  • Surface mount 7050 package.

744314024 Applications

  • Used in DC-DC converter output filtering.
  • Ideal for automotive power management systems.
  • Suitable for high current power supply designs.
  • Employed in EMI filtering circuits.

744314024 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value?

240nH nominal at 100kHz/100mV, ±20% tolerance.

What is the rated current?

20A maximum at ΔT=50K; performance rated current 35.4A at ΔT=40K per IEC 62024-2-2020.

What is the DC resistance?

1mOhm nominal ±10% at 20°C.

What is the self-resonant frequency?

320MHz typical.

What is the package size?

Nonstandard 7050 package: 7.00mm x 6.90mm x 5.00mm.

Is this inductor AEC-Q200 qualified?

Yes, rated AEC-Q200.

What is the operating temperature range?

-40°C to +150°C.
