| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
284 pcs
|
284 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature Range | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Inductance (Typical @ 100 kHz/ 100 mV/ 17.0 A) | |
| Length | |
| MSL Description | |
| MSL Level | |
| Mounting Type | |
| Operating Temperature | |
| Rated Current (Maximum @ ΔT = 40 K, IEC 62024-2-2020 Class D) | |
| Ratings | |
| SVHC Present | |
| Saturation Current (Typical @ |ΔL/L| < 10%) | |
| Saturation Current (Typical @ |ΔL/L| < 30%) | |
| Shielding | |
| Storage Conditions | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

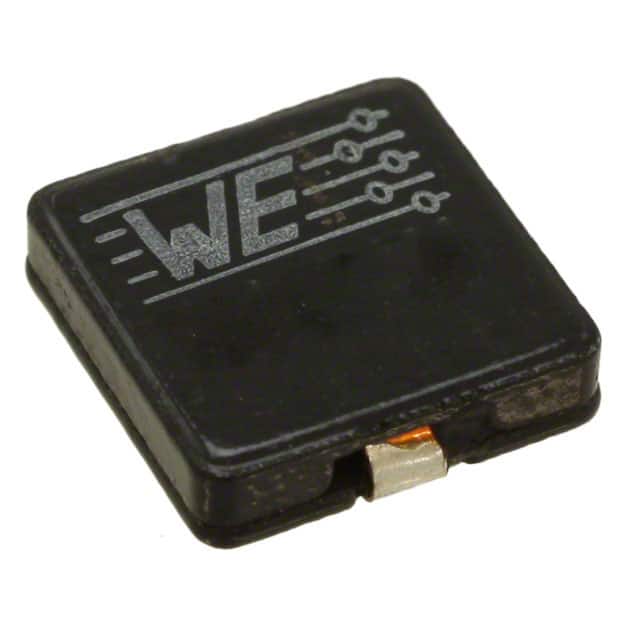

The Würth Elektronik 744313120 is a fixed inductor from the WE-HCI series, featuring a shielded wirewound construction for low electromagnetic interference. It offers an inductance of 1.2 µH with ±20% tolerance, measured at 100 kHz and 100 mV. The component is rated for a continuous current of 17 A (ΔT=50 K) and a performance rated current of 28.8 A (ΔT=40 K) per IEC 62024-2-2020. DC resistance is 2.85 mΩ typical, ensuring high efficiency in power applications.
This inductor is designed for surface mount assembly in a nonstandard 1335 package, with dimensions of 13.00 mm length, 12.80 mm width, and 6.4 mm height. It operates over a wide temperature range from -40°C to 150°C, making it suitable for harsh environments. The self-resonant frequency is 58 MHz typical, and saturation currents are 10 A (10% drop) and 28 A (30% drop) typical.
The 744313120 is AEC-Q200 qualified, meeting automotive reliability standards. It is RoHS and REACH compliant, with MSL Level 1 for unlimited moisture sensitivity. Typical applications include DC-DC converters, high current filtering, and power supply circuits in automotive and industrial electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.27 | $4.27 |
| 10+ | $4.19 | $4.19 |
| 50+ | $3.87 | $3.87 |
| 100+ | $3.71 | $3.71 |
| 200+ | $3.47 | $3.47 |
| 400+ | $2.91 | $2.91 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 1.2 µH at 100 kHz/100 mV, with a tolerance of ±20%.
The rated current is 17 A maximum at ΔT=50 K, and the performance rated current is 28.8 A maximum at ΔT=40 K per IEC 62024-2-2020.
The DC resistance is 2.85 mΩ typical, ±10%.
The self-resonant frequency is 58 MHz typical.
It is a surface mount device in a nonstandard package, size 1335, with dimensions 13.00 mm x 12.80 mm x 6.4 mm (height).
Yes, it is shielded.
Yes, it is AEC-Q200 qualified.
