Mfr Part #:

744310095

Q: What is the inductance of 744310095?

950 nH (0.95 µH) ±20% at 100 kHz/100 mV.

Q: What is the DC resistance?

6.2 mΩ typical ±10% at 20°C.

Q: What is the saturation current?

5 A typical at 10% inductance drop, 13 A typical at 30% drop.

Q: Is this inductor AEC-Q200 qualified?

Yes, it is AEC-Q200 qualified for automotive applications.

Available from 1 distributors

Mfr Name: Würth Elektronik

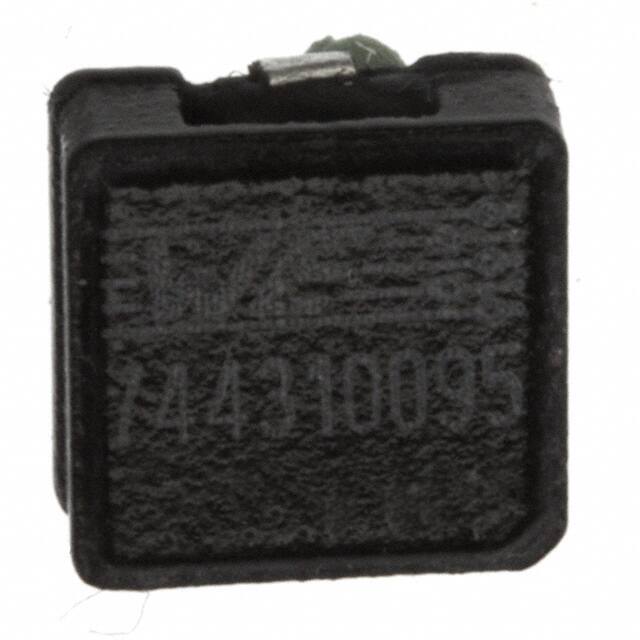

Fixed inductor from Würth Elektronik, 950nH inductance, 11A rated current, 6.2mOhm DC resistance, surface mount shielded wirewound design.

✓ Total Stock: 4 pcs

$ Price Range: $2.31 - $3.80

744310095 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	4 pcs On Request	4 pcs	On Request	1	On Request	On Request	NO DC	On Request	On Request

744310095 Description

Short technical summary and product information.

The 744310095 is a shielded wirewound surface mount inductor from Würth Elektronik's WE-HCI series. It offers an inductance of 950 nH (0.95 µH) with ±20% tolerance, measured at 100 kHz / 100 mV.

Key electrical specs: rated current of 11 A (ΔT=50K) and performance rated current of 14.4 A (ΔT=40K). DC resistance is 6.2 mΩ typical. Saturation current is 5 A at 10% inductance drop and 13 A at 30% drop. Self-resonant frequency is 90 MHz.

Designed for high current applications, this inductor is AEC-Q200 qualified for automotive use. Operating temperature range is -40°C to +150°C. The shielded construction minimizes EMI. Suitable for DC-DC converters, power supplies, and automotive electronics.

Package: Nonstandard SMD package. Dimensions from datasheet: 6.9mm x 3.45mm x 3.0mm (approx). Storage conditions: <40°C, <75% rH.

744310095 Quick Information

Product Type: Fixed Inductor

Series: WE-HCI

Canonical Name: WE-HCI SMT High Current Inductor 950nH

Subcategory: High Current Inductor

744310095 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1

REACH Status: Compliant

Lead Free: Yes

744310095 Estimated Pricing

Qty	Low	High
1+	$3.80	$3.80
10+	$3.72	$3.72
50+	$3.44	$3.44
100+	$3.29	$3.29
500+	$3.08	$3.08
1,500+	$2.31	$2.31

Estimated market price range - modelled values for guidance only, not live distributor offers.

744310095 Features

Shielded wirewound construction for low EMI.
Rated current of 11A at 50K temperature rise.
AEC-Q200 qualified for automotive applications.
Self-resonant frequency of 90 MHz.
Operating temperature range -40°C to +150°C.

744310095 Applications

Used in DC-DC converters and power supplies.
Suitable for automotive engine control modules.
Ideal for high current filtering applications.
Applicable in LED lighting and infotainment systems.

744310095 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the inductance of 744310095?

950 nH (0.95 µH) ±20% at 100 kHz/100 mV.

What is the rated current?

11 A maximum at ΔT=50K.

What is the DC resistance?

6.2 mΩ typical ±10% at 20°C.

What is the self-resonant frequency?

90 MHz typical.

What is the package/case?

Nonstandard SMD package.

What is the saturation current?
