| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
105 pcs
|
105 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Ambient Temperature (referring to I_RP) | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Performance Rated Current (ΔT=40K) | |
| Rated Current (ΔT=50K) | |
| Rated Inductance (Typical @ 18 A) | |
| Ratings | |
| Saturation Current (Typical @ |ΔL/L| < 10%) | |
| Shielding | |
| Storage Conditions | |
| Storage Temperature | |
| Supplier Device Package | |
| Tolerance | |
| Type | |
| Width |

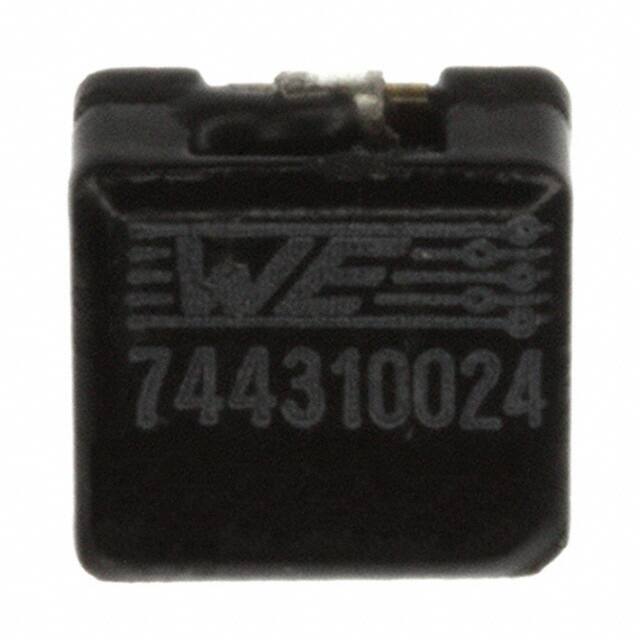

The Würth Elektronik 744310024 is a shielded wirewound fixed inductor from the WE-HCI series. It offers an inductance of 0.24 µH (240 nH) with ±20% tolerance, measured at 100 kHz / 100 mV. The component is rated for a maximum current of 18 A (ΔT=50K) and a performance rated current of 28.8 A (ΔT=40K per IEC 62024-2-2020). DC resistance is 1.8 mΩ typical at 20°C. Self-resonant frequency is 220 MHz typical. Saturation current is 18 A typical at 10% inductance drop and 40 A typical at 30% drop. The inductor is designed for surface mount assembly in a nonstandard 7030 package (7.0 mm x 6.9 mm x 3.3 mm). Operating temperature range is -40°C to +150°C. The component is RoHS3 compliant and REACH unaffected with MSL 1. Typical applications include high current power supplies, DC-DC converters, and filtering circuits where low DCR and high current handling are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.80 | $3.80 |
| 10+ | $3.72 | $3.72 |
| 50+ | $3.44 | $3.44 |
| 100+ | $3.29 | $3.29 |
| 500+ | $3.08 | $3.08 |
| 1,500+ | $2.31 | $2.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 0.24 µH (240 nH) at 100 kHz / 100 mV with ±20% tolerance.
The rated current is 18 A maximum at ΔT=50K, and performance rated current is 28.8 A maximum at ΔT=40K per IEC 62024-2-2020.
The DC resistance is 1.8 mΩ typical at 20°C.
The self-resonant frequency is 220 MHz typical.
The inductor is surface mount in a nonstandard 7030 package, dimensions 7.0 mm x 6.9 mm x 3.3 mm.
Saturation current is 18 A typical at 10% inductance drop and 40 A typical at 30% drop.
The operating temperature range is -40°C to +150°C.
