744281471 Surface mount common mode line filter with 470µH inductance, 150mA rated current, and 100kΩ impedance. Designed for signal line filtering applications.
Mfr Part #:

744281471

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Surface mount common mode line filter with 470µH inductance, 150mA rated current, and 100kΩ impedance. Designed for signal line filtering applications.
✓ Total Stock: 600 pcs
$ Price Range: $2.09 - $3.00

744281471 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
600 pcs
On Request
600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

744281471 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Impedance @ Frequency
Inductance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
Voltage Rating
View Similar Products (0)

744281471 Description

Short technical summary and product information.

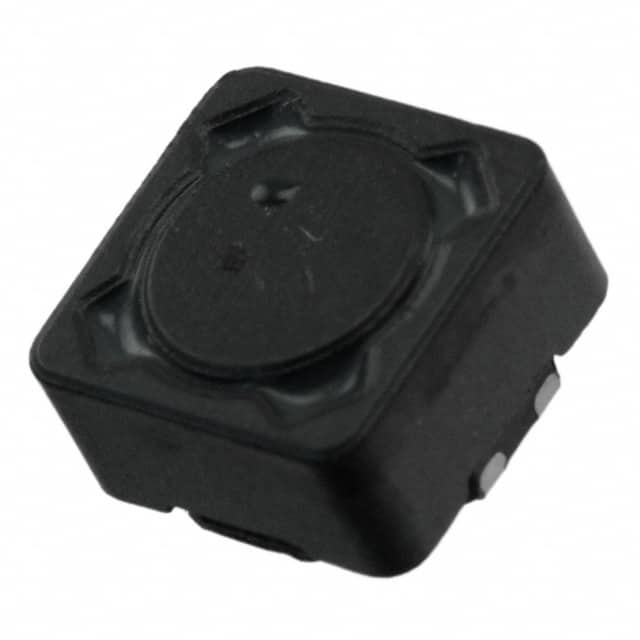

The Würth Elektronik 744281471 is a WE-SCC series SMT common mode line filter designed for signal line filtering. This component features a nominal inductance of 470µH measured at 100kHz and 100mV, with a typical impedance of 100kΩ at 3MHz and a maximum impedance of 100kΩ. The filter is rated for a maximum DC current of 150mA (based on 40K temperature rise) and a maximum DC resistance of 4.3Ω. It supports a rated voltage of 80V and an insulation test voltage of 250V AC.



The device is housed in a horizontal, 4 PC pad surface mount package measuring 7.30mm x 7.30mm with a maximum height of 4.80mm. It operates over a temperature range of -40°C to +125°C and has an MSL rating of 1 (unlimited floor life). The filter is RoHS3 compliant and REACH unaffected per manufacturer specifications.

744281471 Quick Information

Product Type: Common Mode Choke
Series: WE-SCC
Canonical Name: WE-SCC Common Mode Line Filter
Subcategory: Signal Line Filter

744281471 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

744281471 Estimated Pricing

Qty Low High
1+ $3.00 $3.00
10+ $2.96 $2.96
50+ $2.68 $2.68
100+ $2.58 $2.58
500+ $2.39 $2.39
1,000+ $2.09 $2.09

Estimated market price range - modelled values for guidance only, not live distributor offers.

744281471 Features

  • Common mode line filter for signal lines.
  • 470µH inductance at 100kHz, 100mV.
  • 150mA maximum rated DC current.
  • 100kΩ typical impedance at 3MHz.
  • Surface mount, 7.30mm x 7.30mm package.

744281471 Applications

  • Suitable for signal line EMI filtering applications.
  • Use in DC power supply lines requiring common mode filtering.
  • Ideal for noise suppression in digital and analog circuits.
  • Designed for surface mount assembly processes.

744281471 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value of the 744281471 common mode choke?

The inductance is 470µH at 100kHz, 100mV, with a tolerance of ±20%.

What is the maximum DC resistance (DCR) of this choke?

The maximum DCR is 4.3Ω.

What is the rated current for the 744281471?

The rated current is 150mA maximum, based on a 40K temperature rise.

What is the operating temperature range?

The operating temperature range is -40°C to +125°C.

What is the package / case of this Würth Elektronik choke?

The package is horizontal, 4 PC pad surface mount, measuring 7.30mm x 7.30mm with a maximum height of 4.80mm.

Is the 744281471 RoHS compliant?

The datasheet indicates RoHS3 compliance, though this has not been independently verified.

What is the MSL (Moisture Sensitivity Level) of this part?

The MSL is level 1 (unlimited floor life), verified in the datasheet.
