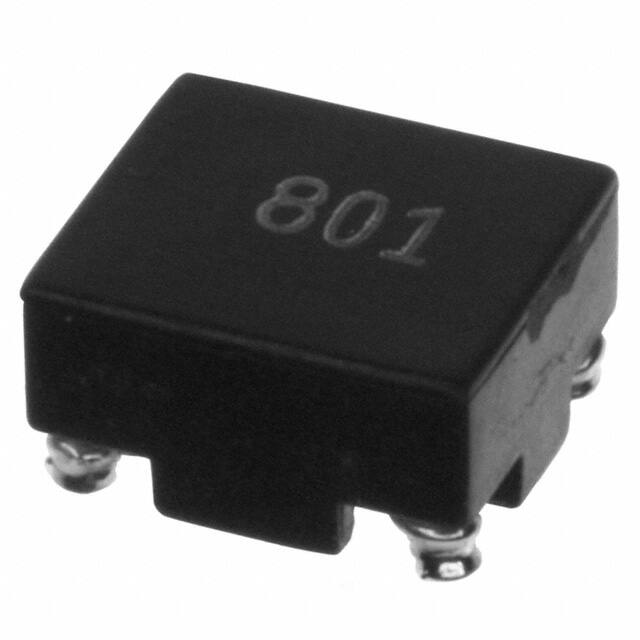

This is a surface mount common mode choke from Würth Elektronik, part of the WE-SL5 HC series. It is designed for power and signal line filtering applications. The component features a horizontal, 4 PC pad package.
Key electrical specifications include a typical inductance of 9 µH at 100 kHz, a maximum DC resistance of 11 mΩ, and a rated current of 3.5 A at ΔT = 40 K. The impedance is 800 Ω ±25% at 100 MHz. The rated voltage is 80 V, and the insulation test voltage is 500 V AC.
The operating temperature range is -40°C to +125°C, with an ambient temperature range for rated current of -40°C to +85°C. The component is RoHS3 compliant and halogen-free. Moisture sensitivity level is MSL 1.
The package dimensions are 9.5 mm length, 8.3 mm width, and 5.3 mm height. It is surface mountable with a recommended land pattern provided in the datasheet. Storage conditions are below 40°C and 75% RH.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.59 | $3.59 |
| 10+ | $3.33 | $3.33 |
| 50+ | $3.01 | $3.01 |
| 100+ | $2.90 | $2.90 |
| 500+ | $2.69 | $2.69 |
| 1,000+ | $2.35 | $2.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 80 V.
The package is Horizontal, 4 PC Pad, surface mount.
The operating temperature range is -40°C to +125°C.
Yes, it is RoHS3 compliant (2011/65/EU & 2015/863).
The maximum rated current is 3.5 A at ΔT = 40 K.
The impedance is 800 Ω ±25% at 100 MHz.
The typical inductance is 9 µH at 100 kHz.
