| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
124 pcs
|
124 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
54 pcs
|
54 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

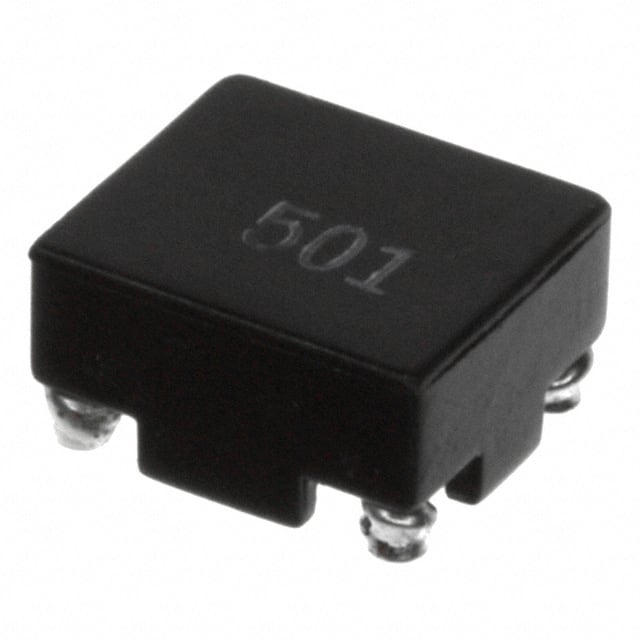

The 744273501 is a common mode line filter from Würth Elektronik's WE-SL5 HC series. It features an inductance of 5 µH (typical at 100 kHz) and an impedance of 500 Ω (nominal at 100 MHz). The component is rated for a maximum DC current of 5 A with a temperature rise of 40 K, and has a maximum DC resistance of 5.5 mΩ. It is designed for signal line filtering applications. The filter is housed in a surface mount package with a horizontal, 4 PC pad configuration. Dimensions are 9.5 mm length, 8.3 mm width, and 5.3 mm height. Operating temperature range is -40°C to +125°C. The component is RoHS, REACH, and Halogen Free compliant with MSL 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.59 | $3.59 |
| 10+ | $3.33 | $3.33 |
| 50+ | $3.01 | $3.01 |
| 100+ | $2.90 | $2.90 |
| 500+ | $2.69 | $2.69 |
| 1,000+ | $2.35 | $2.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum rated voltage is 80 V.
Surface mount, horizontal 4 PC pad package.
-40°C to +125°C.
Yes, it is RoHS3 compliant.
500 Ω nominal (±25%).
Maximum 5.5 mΩ.
570 nH typical at 1 MHz.
