| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| Filter Type | |
| Height (Max) | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

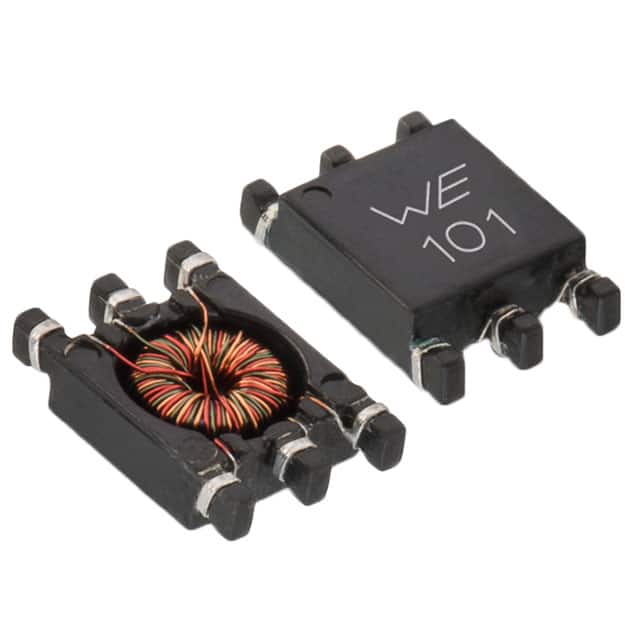

This is a surface mount common mode line filter from Würth Elektronik's WE-SL3 series. It is designed for signal line filtering applications, providing high impedance up to 5000Ω to suppress common mode noise.
Electrical specifications include 100µH inductance (tolerance +50%/-30%) at 100kHz, 450mA maximum current rating (ΔT=40K), 80V rated voltage (42VAC), and 0.45Ω maximum DC resistance. Leakage inductance is 94nH typical at 1MHz/1mA. Insulation test voltage is 500VAC.
The component is housed in a compact SMD package measuring 9.2mm x 6.6mm x 2.5mm. It operates over -40°C to +125°C temperature range and has MSL 1 moisture sensitivity. The case is WE-SL3 with SMD terminations. Flammability rating is UL 94 V-0.
This trifilar (3-winding) choke is suitable for power over Ethernet (PoE), audio frequency noise suppression, and CAN bus lines. It is RoHS, REACH, and halogen-free compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.58 | $2.58 |
| 10+ | $2.39 | $2.39 |
| 50+ | $2.18 | $2.18 |
| 100+ | $1.99 | $1.99 |
| 500+ | $1.85 | $1.85 |
| 1,500+ | $1.65 | $1.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80V DC (42V AC).
WE-SL3 SMD package.
-40°C to +125°C.
Yes, compliant with 2011/65/EU and 2015/863.
100µH at 100kHz (tolerance +50%/-30%).
450mA maximum (ΔT=40K).
5000Ω typical.
