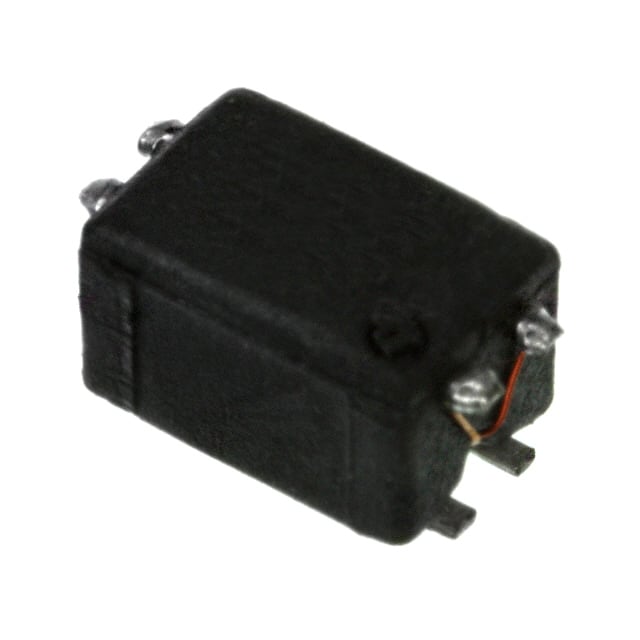

The 744242101 is a surface-mount common mode line filter from Würth Elektronik's WE-SLM series. It features a 2-winding bifilar construction with an inductance of 100 µH (tolerance +50%/-30%) and a typical maximum impedance of 4 kΩ. The component is rated for a maximum current of 300 mA with a temperature rise of 40 K, and has a maximum DC resistance of 580 mΩ. The rated voltage is 80 V DC, and the insulation test voltage is 250 VAC.
Designed for common mode noise suppression, this filter is suitable for various applications including USB, CAN, FireWire, signal and sensor lines, and power supply systems. It operates over a temperature range of -40°C to +125°C, with an ambient temperature range for rated current of -40°C to +85°C.
The component is packaged in a horizontal, 4-flat lead SMD package measuring 6.00 mm x 3.30 mm with a maximum height of 3.50 mm. It is compliant with RoHS, REACH, and halogen-free standards, and has a moisture sensitivity level of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.59 | $3.59 |
| 10+ | $3.33 | $3.33 |
| 50+ | $3.01 | $3.01 |
| 100+ | $2.90 | $2.90 |
| 250+ | $2.69 | $2.69 |
| 500+ | $2.35 | $2.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 80 V DC (42 V AC).
Surface mount, horizontal 4 flat lead package.
-40°C to +125°C.
Yes, it is RoHS3 compliant.
100 µH at 10 kHz, 100 mV, with tolerance +50%/-30%.
4 kΩ typical.
300 mA maximum at 40 K temperature rise.
