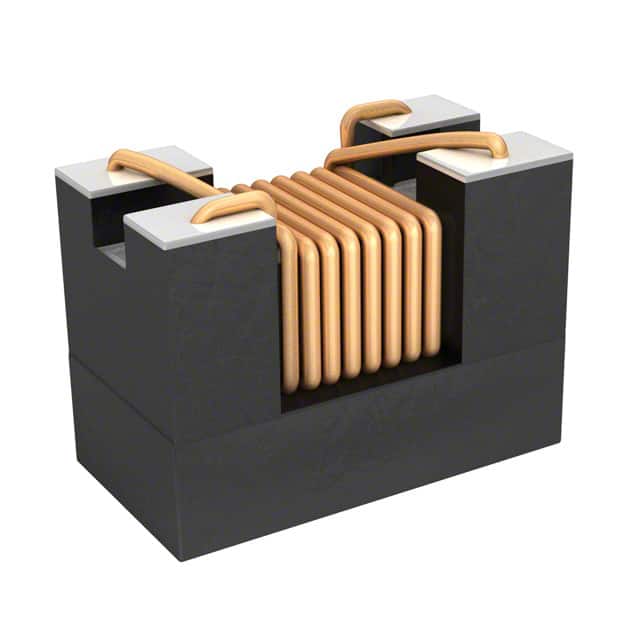

7442335600

The Würth Elektronik 7442335600 is a current-compensated common mode line filter from the WE-CNSW HF series. It features a bifilar winding design that provides high common mode noise suppression at high frequencies while minimizing influence on high-speed differential signals. Key electrical specifications include an inductance of 100 nH (typical), impedance of 60 Ω ±25% at 100 MHz, a maximum DC resistance of 220 mΩ, and a rated current of 600 mA at a 20 K temperature rise. The cut-off frequency is 10 GHz typical, and the rated voltage is 20 V with an insulation test voltage of 125 V AC. This component is qualified to AEC-Q200 Grade 2 for automotive applications. The package is a surface mount 0504 (1.2 mm x 1.0 mm x 0.9 mm) with a horizontal 4 PC pad configuration. Operating temperature range for the component is -40°C to +105°C, with ambient temperature derating to -40°C to +85°C for the rated current. The filter is RoHS3 compliant, REACH conform, halogen free, and has a flammability rating of UL 94 V-0. It is suitable for high-speed data line filtering in USB 2.0/3.0, HDMI, LVDS, and IEEE 1394 (Firewire) interfaces.
