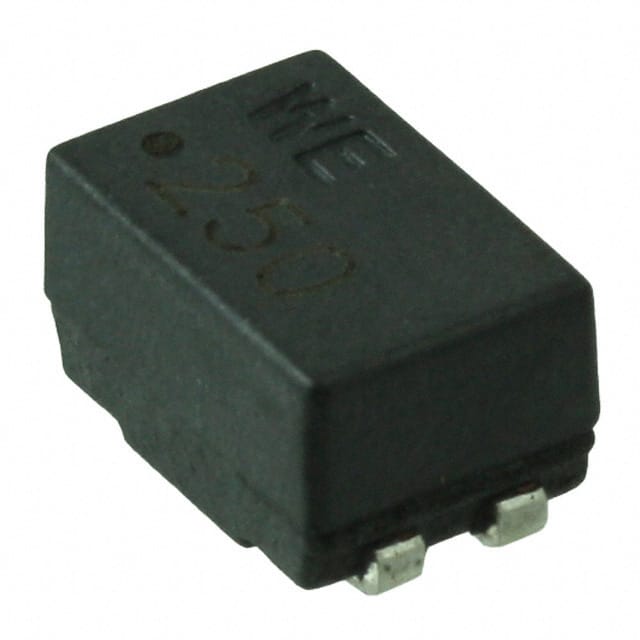

The Würth Elektronik 744227 is a WE-SL2 series surface-mount common mode line filter designed for power and signal line applications. It features a 2-winding bifilar or sectional winding construction with an inductance of 51 µH (measured at 1 kHz, 100 mV) and typical impedance of 5.5 kΩ at 10 MHz.
The component has a maximum DC resistance of 160 mΩ and a rated current of 1 A (ΔT = 40 K). Rated voltage is 80 V, and insulation test voltage is 500 V AC. Leakage inductance is typically 85 nH at 1 MHz. The filter operates over a temperature range of -40°C to +125°C, with ambient temperature for rated current from -40°C to +85°C.
The 744227 is supplied in a horizontal, 4-pin SMD package measuring 9.2 mm × 6.0 mm × 5.3 mm (max). It is qualified to AEC-Q200 Grade 1 and has a moisture sensitivity level of 1 (unlimited). The component is RoHS3 compliant, REACH conform, and halogen-free per JEDEC JS709B and IEC 61249-2-21.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.62 | $2.62 |
| 10+ | $2.59 | $2.59 |
| 50+ | $2.34 | $2.34 |
| 100+ | $2.25 | $2.25 |
| 500+ | $2.09 | $2.09 |
| 1,000+ | $1.92 | $1.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80 V
Horizontal, 4 PC Pad surface-mount package.
-40°C to +125°C
Yes, RoHS3 compliant per 2011/65/EU and 2015/863.
51 µH at 1 kHz, 100 mV.
1 A maximum (ΔT = 40 K).
Yes, AEC-Q200 Grade 1.
