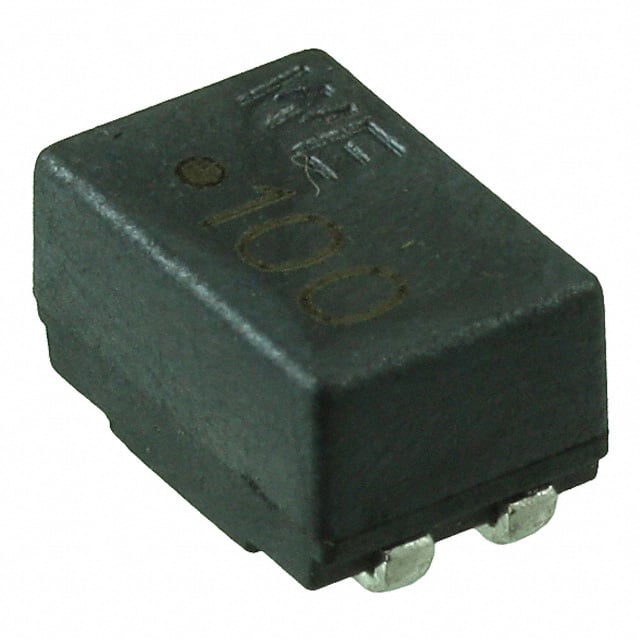

The Würth Elektronik 744224 is a WE-SL2 series SMT common mode line filter designed for power and signal line applications. It features a 2-line configuration with a nominal inductance of 250µH at 100kHz and a typical impedance of 1.8kΩ at 8MHz. The component is rated for a maximum current of 1.2A and a maximum DC resistance of 130mΩ, ensuring efficient power handling with minimal loss.
This common mode choke is housed in a horizontal, 4 PC pad surface mount package with dimensions of 9.2mm x 6.0mm and a maximum height of 5.2mm. It operates over a temperature range of -40°C to 125°C and is qualified to AEC-Q200 Grade 1, making it suitable for automotive and industrial environments. The component is RoHS3 compliant, REACH conform, and halogen-free.
Typical applications include EMI suppression in power lines, signal line filtering, and noise reduction in automotive electronics. The 744224 is designed for general electronic equipment and is not authorized for safety-critical applications without specific agreement.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.53 | $2.53 |
| 10+ | $2.44 | $2.44 |
| 25+ | $2.43 | $2.43 |
| 50+ | $2.34 | $2.34 |
| 100+ | $2.25 | $2.25 |
| 500+ | $2.09 | $2.09 |
| 1,000+ | $1.77 | $1.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 250µH at 100kHz with a tolerance of ±50%.
The maximum rated current is 1.2A at a temperature rise of 40K.
The operating temperature range is -40°C to 125°C.
Yes, it is RoHS3 compliant per directives 2011/65/EU and 2015/863.
It uses a horizontal, 4 PC pad surface mount package.
The typical impedance is 1.8kΩ at 8MHz.
Yes, it is AEC-Q200 Grade 1 qualified.
