| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Inductance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

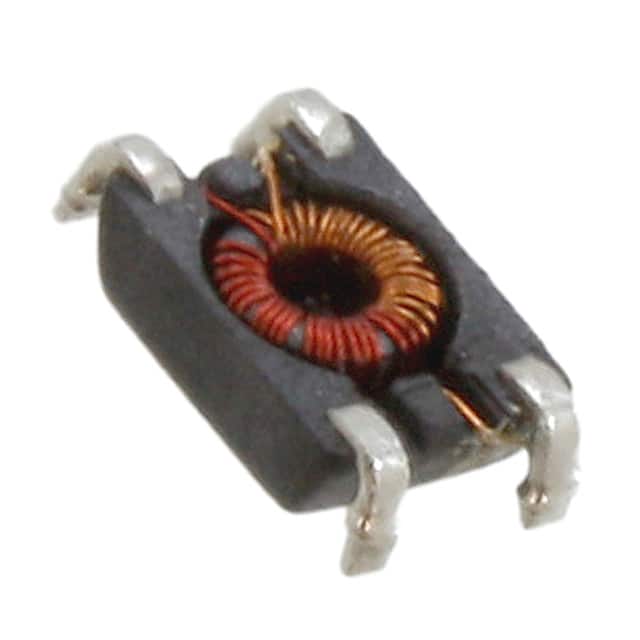

The 744212510 is a 2-line common mode choke from Würth Elektronik's WE-SL1 series, designed for signal line filtering applications. It features an inductance of 51 µH ±50% measured at 10 kHz/20 mV, with a typical impedance of 300 Ω at 300 MHz for effective common mode noise suppression. The component is rated for a maximum current of 300 mA and has a DC resistance of 0.16 Ω max. The rated voltage is 80 V, with an insulation test voltage of 250 V AC. Leakage inductance is typically 270 nH at 1 MHz/1 mA.
The choke is housed in a horizontal, 4 J-Lead surface mount package with dimensions of 6.50 mm x 3.60 mm x 1.80 mm. It operates over a temperature range of -40°C to 105°C and has a moisture sensitivity level of 1 (unlimited). The component is compliant with RoHS (2011/65/EU & 2015/863) and REACH ((EC)1907/2006), and is halogen free per JEDEC JS709B and IEC 61249-2-21.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.50 | $4.50 |
| 10+ | $4.44 | $4.44 |
| 50+ | $4.01 | $4.01 |
| 100+ | $3.86 | $3.86 |
| 500+ | $3.58 | $3.58 |
| 1,000+ | $3.29 | $3.29 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80 V.
Horizontal, 4 J-Lead surface mount.
-40°C to 105°C.
Yes, compliant with 2011/65/EU and 2015/863.
51 µH at 10 kHz/20 mV, ±50% tolerance.
300 Ω typical.
0.16 Ω.
