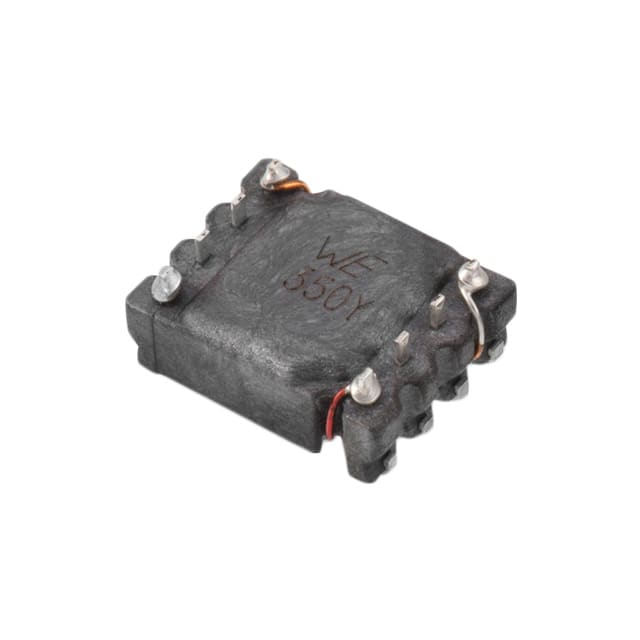

744207 Common mode choke with 35µH inductance, 2.7A rated current, and 1100Ω max impedance. Surface mount package with 2 lines.
Mfr Part #:

744207

Available from 2 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Common mode choke with 35µH inductance, 2.7A rated current, and 1100Ω max impedance. Surface mount package with 2 lines.
✓ Total Stock: 437 pcs
$ Price Range: $2.38 - $3.12

744207 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
416 pcs
On Request
416 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

744207 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
Filter Type
Height (Max)
Inductance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
Voltage Rating
View Similar Products (0)

744207 Description

Short technical summary and product information.

This is a surface mount common mode choke from Würth Elektronik, part of the WE-SL series. It features a 35µH inductance at 100kHz, with a maximum impedance of 1100Ω.



The component is rated for a maximum current of 2.7A (ΔT=40K) and has a DC resistance of 0.035Ω. It has a rated voltage of 80V and an insulation test voltage of 500VAC. Operating temperature range is -40°C to 125°C.



The choke is designed for signal line filtering applications. It comes in a horizontal, 8 gull wing surface mount package with dimensions 10.2mm x 5.4mm x 6.05mm height. It is RoHS, REACH, and Halogen Free compliant with MSL 1.

744207 Quick Information

Product Type: Common Mode Choke
Series: WE-SL
Canonical Name: Common Mode Choke, 35 µH, 2.7 A, 2 Lines, Surface Mount
Subcategory: Signal Line Filter

744207 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 75
REACH Status: REACH Unaffected

744207 Estimated Pricing

Qty Low High
1+ $3.12 $3.12
50+ $3.00 $3.00
100+ $2.73 $2.73
250+ $2.48 $2.48
600+ $2.38 $2.38

Estimated market price range - modelled values for guidance only, not live distributor offers.

744207 Features

  • 35µH inductance at 100kHz.
  • 2.7A rated current with 0.035Ω DCR.
  • 1100Ω maximum impedance.
  • Surface mount gull wing package.
  • RoHS, REACH, and Halogen Free compliant.

744207 Applications

  • Common mode noise filtering in signal lines.
  • EMI suppression in power supply circuits.
  • Data line filtering for communication interfaces.

744207 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the rated voltage of the 744207?

The rated voltage is 80V maximum.

What is the package type of the 744207?

It comes in a horizontal, 8 gull wing surface mount package.

What is the operating temperature range?

-40°C to 125°C.

Is the 744207 RoHS compliant?

Yes, it is RoHS compliant (2011/65/EU & 2015/863).

What is the inductance value?

35 µH at 100 kHz.

What is the rated current?

2.7 A maximum.

What is the maximum impedance?

1100 Ω.
